PM3700-20-RC - Bourns

Description: Common Mode Choke SMD 0.5mH 6A Common Mode Choke SMD 0.5mH 6A

Download PM3700-20-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

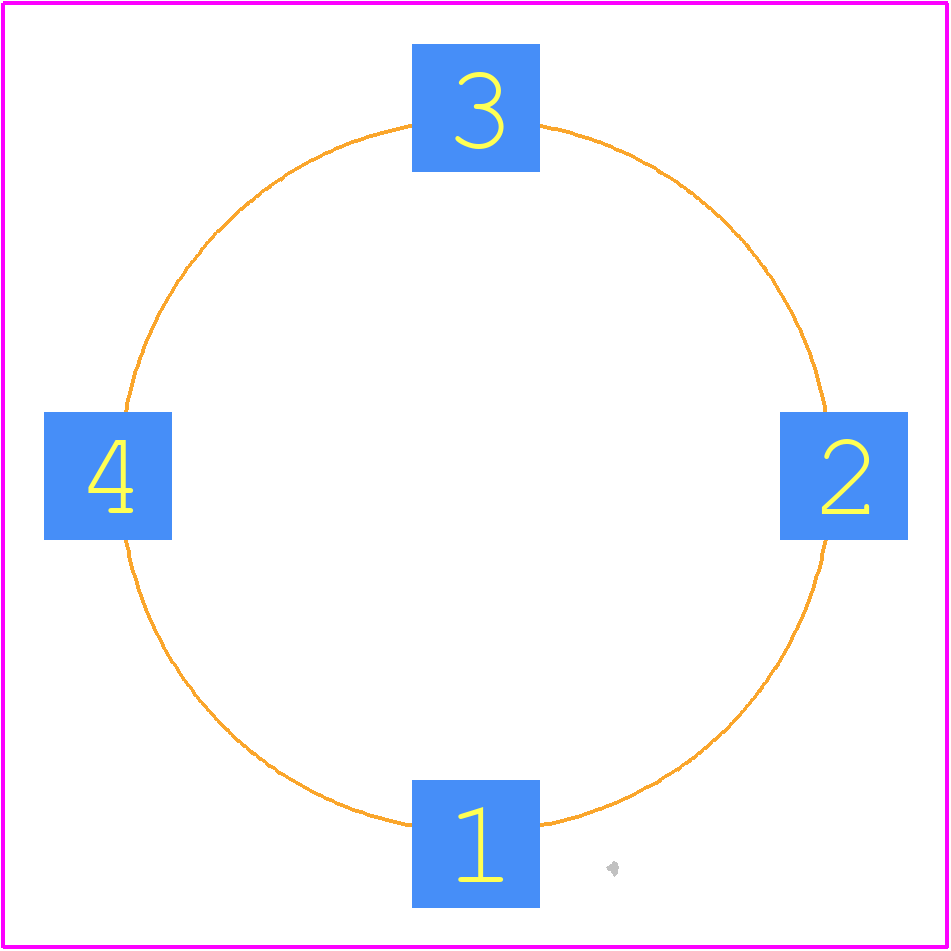

PM3700-20-RC - Bourns PCB footprint - Other - Other - PM3700-20-RC-2
click to zoom
3D Models
PM3700-20-RC - Bourns  - 3D model - Other - PM3700-20-RC-2
click to zoom

PM3700-20-RC Details

  • Manufacturer Part Number:

    PM3700-20-RC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SMD, 4 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6

  • Additional Feature:

    TAPE AND REEL

  • Attenuation Frequency-Max:

    40 MHz

  • Attenuation@Freq-Max:

    20 dB

  • DC Resistance-Max:

    0.01 Ω

  • Diameter:

    17.78 mm

  • Filter Type:

    DATA LINE FILTER

  • Height:

    11.43 mm

  • Inductance:

    500 µH

  • JESD-609 Code:

    e1

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    6 A

  • Terminal Finish:

    TIN SILVER COPPER

PM3700-20-RC Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central grounding point and minimal track lengths is recommended to reduce electromagnetic interference (EMI) and ensure optimal performance.
  • Use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Ensure the component is properly aligned and the solder joints are clean and free of oxidation.
  • The PM3700-20-RC is rated for operation from -40°C to 125°C, but derating may be necessary for high-temperature applications.
  • Yes, the PM3700-20-RC is designed to withstand vibrations up to 10 G, but it's essential to ensure proper mounting and securing of the component to the PCB to prevent mechanical stress.
  • Use a multimeter to measure voltage and current at the input and output pins. Check for signs of overheating, and verify that the component is properly soldered and mounted. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
