PM3700-40-RC - Bourns

Description: 1 mH @ 1 kHz 2 Line Common Mode Choke Surface Mount 4A DCR 20mOhm

Download PM3700-40-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PM3700-40-RC - Bourns - PCB symbol
click to zoom
PCB Footprints

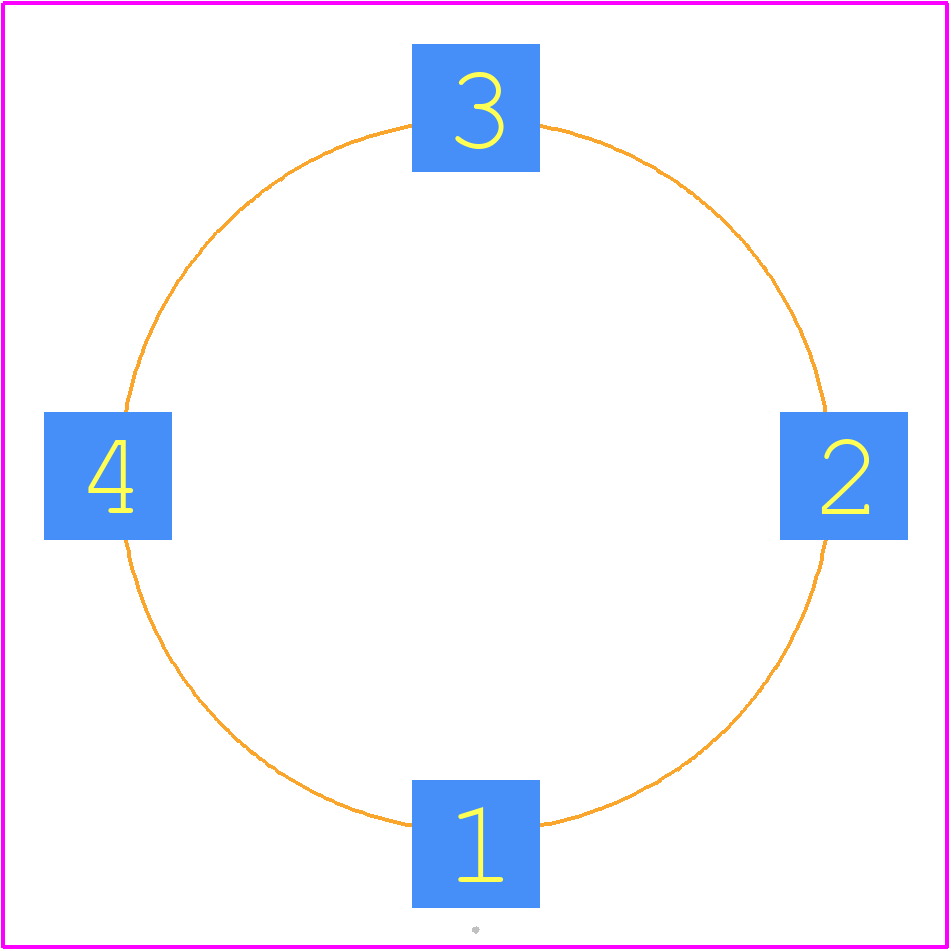

PM3700-40-RC - Bourns PCB footprint - Other - Other - 17.78 x 11.43mm
click to zoom
3D Models
PM3700-40-RC - Bourns - 3D model - Other - 17.78 x 11.43mm
click to zoom

PM3700-40-RC Details

  • Manufacturer Part Number:

    PM3700-40-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SMD, 4 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6

  • Additional Feature:

    TAPE AND REEL

  • Attenuation Frequency-Max:

    40 MHz

  • Attenuation@Freq-Max:

    20 dB

  • DC Resistance-Max:

    0.02 Ω

  • Diameter:

    17.78 mm

  • Filter Type:

    DATA LINE FILTER

  • Height:

    11.43 mm

  • Inductance:

    1000 µH

  • JESD-609 Code:

    e1

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    4 A

  • Terminal Finish:

    TIN SILVER COPPER

PM3700-40-RC Frequently Asked Questions (FAQs)

  • A symmetrical layout with a central ground plane and minimal track lengths is recommended. Keep the input and output tracks separate and avoid crossing them to minimize noise and ensure optimal performance.
  • Use a soldering iron with a temperature of 250°C to 270°C. Apply a small amount of solder paste to the pads and use a gentle touch to avoid damaging the component. Ensure the component is properly aligned and seated before soldering.
  • The PM3700-40-RC can operate safely within a temperature range of -40°C to 125°C. However, it's recommended to derate the component's performance at extreme temperatures to ensure reliability.
  • Yes, the PM3700-40-RC is designed to withstand vibrations up to 10G. However, it's essential to ensure the component is properly secured to the PCB and the PCB is mounted securely to the system to prevent damage.
  • Start by checking the input and output voltages, then verify the component's pinout and connections. Use an oscilloscope to check for noise and signal integrity. If issues persist, consult the datasheet and application notes or contact Bourns Inc support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PM3700-40-RC Overview

Use the download button to access the PM3700-40-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PM370, or try a keyword search, such as Data Line Filters
