PM3700-60-RC - Bourns

Description: BOURNS JW MILLER - PM3700-60-RC - SURFACE MOUNT-SMD COMMON MODE CHOKE, 5MH, 2A

Download PM3700-60-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PM3700-60-RC - Bourns - PCB symbol
click to zoom
PCB Footprints

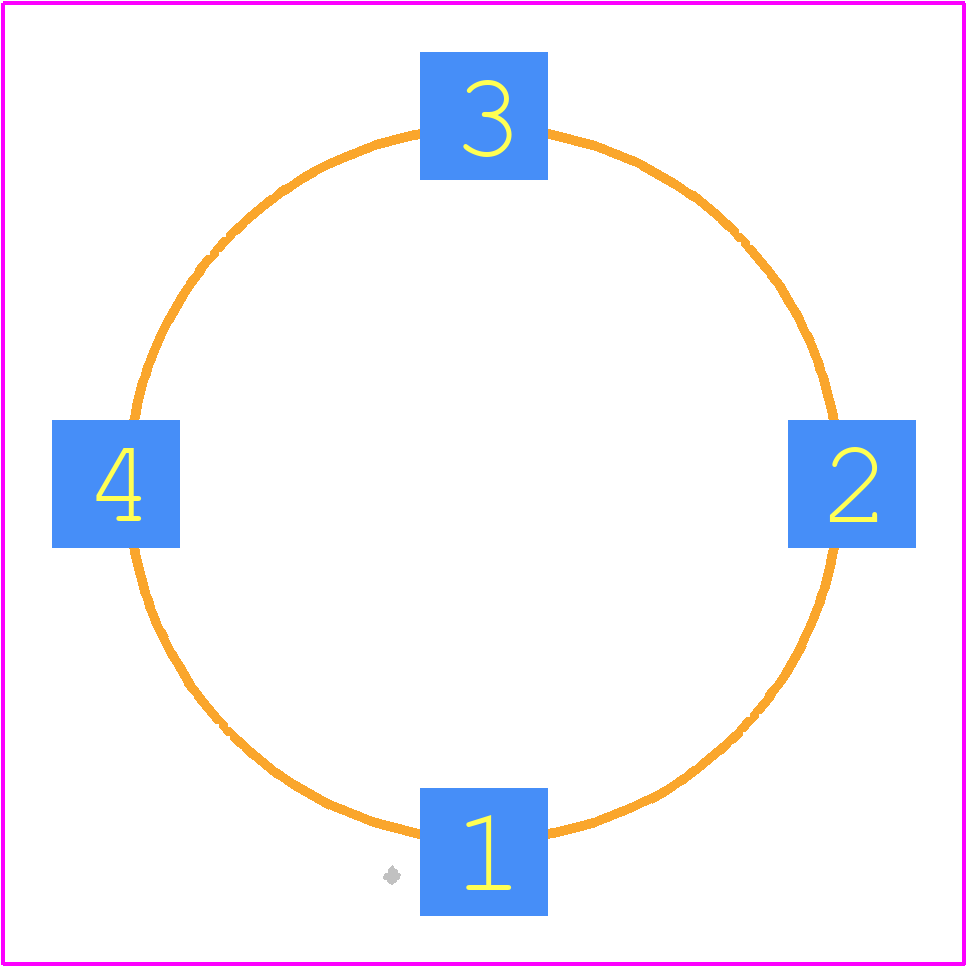

PM3700-60-RC - Bourns PCB footprint - Other - Other - PM3700-60-RC-1
click to zoom
3D Models
PM3700-60-RC - Bourns - 3D model - Other - PM3700-60-RC-1
click to zoom

PM3700-60-RC Details

  • Manufacturer Part Number:

    PM3700-60-RC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SMD, 4 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6

  • Additional Feature:

    TAPE AND REEL

  • Attenuation Frequency-Max:

    10 MHz

  • Attenuation@Freq-Max:

    20 dB

  • DC Resistance-Max:

    0.07 Ω

  • Diameter:

    17.78 mm

  • Filter Type:

    DATA LINE FILTER

  • Height:

    11.43 mm

  • Inductance:

    5000 µH

  • JESD-609 Code:

    e1

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TAPE AND REEL

  • Rated Current:

    2 A

  • Terminal Finish:

    TIN SILVER COPPER

PM3700-60-RC Frequently Asked Questions (FAQs)

  • A good PCB layout for the PM3700-60-RC involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces to reduce electromagnetic interference (EMI).
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves, ensure good thermal management, and consider using a heat sink or thermal interface material to reduce the junction temperature.
  • The maximum allowable voltage transient for the PM3700-60-RC is typically 10% above the maximum rated voltage. However, it's recommended to consult with Bourns Inc or a qualified engineer to determine the specific voltage transient requirements for your application.
  • Yes, the PM3700-60-RC can be used in a redundant or parallel configuration to achieve higher power ratings or improved reliability. However, it's crucial to ensure proper synchronization and control of the devices to avoid oscillations or instability.
  • The PM3700-60-RC requires proper EMI filtering to meet electromagnetic compatibility (EMC) standards. A common-mode choke, X-capacitors, and Y-capacitors can be used to filter out electromagnetic interference and ensure compliance with EMC regulations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PM3700-60-RC Overview

Use the download button to access the PM3700-60-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PM370, or try a keyword search, such as Data Line Filters
