TURNS RATIO: 86, HEIGHT DIMENSION INCLUDES TERMINALS ALSO
Height:
7.1 mm
Input Voltage-Max:
15 V
JESD-609 Code:
e3
Length:
19.5 mm
Mounting Feature:
SURFACE MOUNT
Operating Frequency-Max:
60 kHz
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
1300 V
Packing Method:
TAPE & REEL
Power Rating:
6 W
Surface Mount:
YES
Terminal Finish:
Tin (Sn)
Transformer Type:
INVERTER TRANSFORMER
Width:
16.5 mm
PM61300-3-RC Frequently Asked Questions (FAQs)
Bourns recommends a symmetrical PCB layout with a solid ground plane to minimize electromagnetic interference (EMI) and ensure optimal performance. A minimum of 2 oz copper thickness is recommended for the PCB.
The PM61300-3-RC has a maximum operating temperature of 125°C. Ensure proper thermal management by providing adequate heat sinking, air flow, and keeping the component away from heat sources. A thermal interface material (TIM) can be used to improve heat transfer between the component and the heat sink.
Bourns recommends a soldering profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. The component should be soldered using a no-clean or water-soluble flux, and the soldering iron should be set to a temperature of 350°F (175°C) to 400°F (200°C).
To ensure reliability in high-vibration environments, Bourns recommends using a secure mounting method, such as screwing or adhesive bonding, to prevent the component from shifting or detaching. Additionally, consider using a vibration-dampening material, such as a silicone adhesive, to reduce the impact of vibrations on the component.
The PM61300-3-RC is sensitive to electrostatic discharge (ESD). Handle the component in an ESD-protected environment, and use ESD-protective packaging and handling materials. Ensure that personnel handling the component wear ESD-protective wrist straps or clothing, and use ESD-protected workstations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PM61300-3-RC Overview

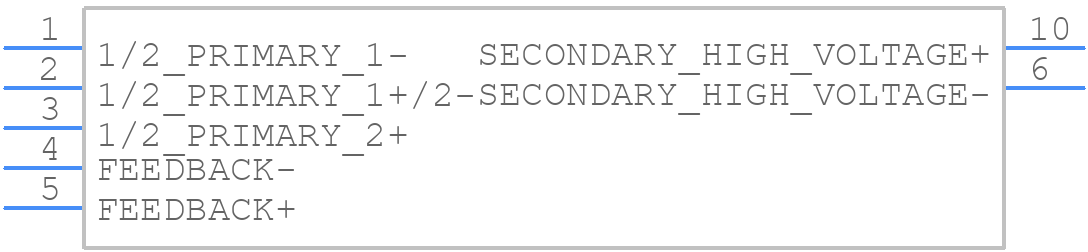

Use the download button to access the PM61300-3-RC schematic symbol and PCB footprint.
