TURNS RATIO: 125, HEIGHT DIMENSION INCLUDES TERMINALS ALSO
Height:
7.1 mm
Input Voltage-Max:
10.5 V
JESD-609 Code:
e3
Length:
19.5 mm
Mounting Feature:
SURFACE MOUNT
Operating Frequency-Max:
60 kHz
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
1300 V
Packing Method:
TAPE & REEL
Power Rating:
6 W
Surface Mount:
YES
Terminal Finish:
Tin (Sn)
Transformer Type:
INVERTER TRANSFORMER
Width:
16.5 mm
PM61300-5-RC Frequently Asked Questions (FAQs)
Bourns provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure optimal performance, low inductance, and minimal parasitic effects.
To minimize electromagnetic interference (EMI), keep the inductor at least 5 mm away from sensitive components. You can also use shielding techniques, such as copper tape or a mu-metal shield, to contain the magnetic field.
While the datasheet specifies a maximum current rating, the maximum allowable voltage is not explicitly stated. As a general rule, keep the voltage across the inductor below 1.5 times the maximum rated voltage to prevent saturation and ensure reliable operation.
The PM61300-5-RC is rated for operation up to 125°C. However, it's essential to consider the inductor's temperature coefficient and potential derating factors when operating in high-temperature environments. Consult with Bourns' application engineers for specific guidance.
To select the correct inductor value, consider factors such as the operating frequency, current requirements, and desired inductance value. You can use online inductor selection tools or consult with Bourns' application engineers to determine the optimal inductor value for your specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PM61300-5-RC Overview

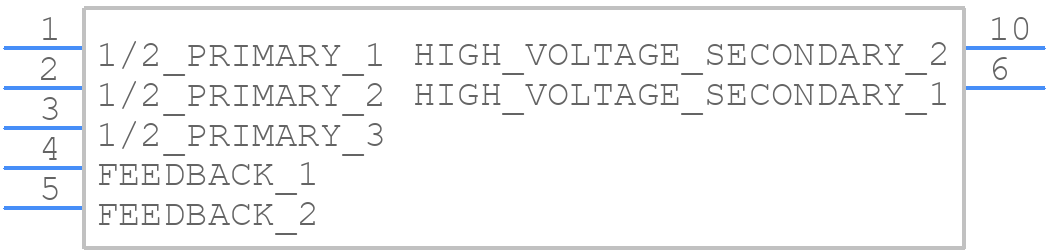

Use the download button to access the PM61300-5-RC schematic symbol, PCB footprint, and 3D model.
