- Part Number PM6697HTR
- Manufacturer STMicroelectronics
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - PM6697HTR
- Released Date Feb 21, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
PM6697HTR Details
-
Manufacturer Part Number:
PM6697HTR
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
VFQFPN-20
-
Country Of Origin:
Mainland China
-
ECCN Code:
3A991.A.3
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
41 Weeks, 4 Days
-
Manufacturer:
STMicroelectronics
-
YTEOL:
6.5
PM6697HTR Frequently Asked Questions (FAQs)
-
STMicroelectronics recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
-
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design guidelines, use a suitable thermal interface material, and ensure good airflow around the device.
-
STMicroelectronics recommends soldering the PM6697HTR using a reflow soldering process with a peak temperature of 260°C (500°F) and a dwell time of 30-60 seconds.
-
To troubleshoot issues with the PM6697HTR, start by checking the power supply voltage, ensuring proper PCB layout and thermal design, and verifying the input and output signals. Consult the datasheet and application notes for more information.
-
Operating the PM6697HTR beyond the recommended specifications can lead to reduced reliability, decreased performance, and potential device failure. It's essential to operate the device within the specified parameters to ensure optimal performance and reliability.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
PM6697HTR Overview

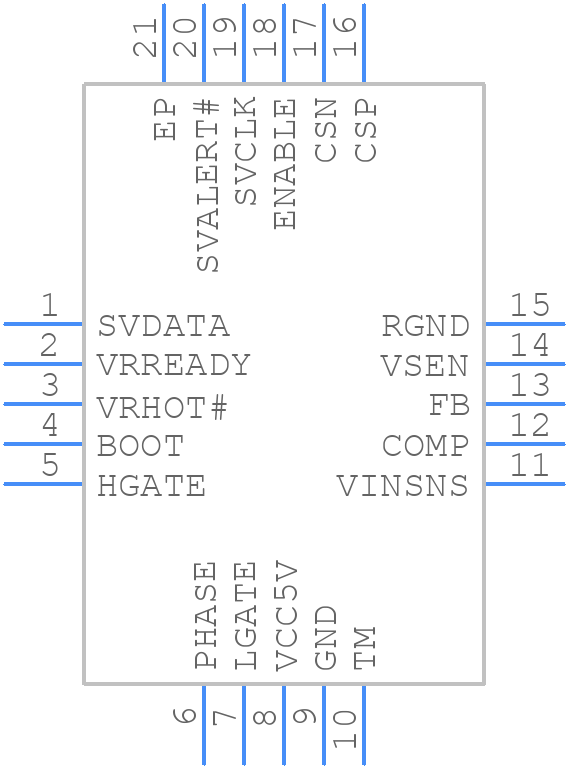

Use the download button to access the PM6697HTR schematic symbol, PCB footprint, and 3D model.
