PM8800A - STMicroelectronics

Description: PM8800A, PWM Current Mode Controller, 16-Pin HTSSOP EP

Download PM8800A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

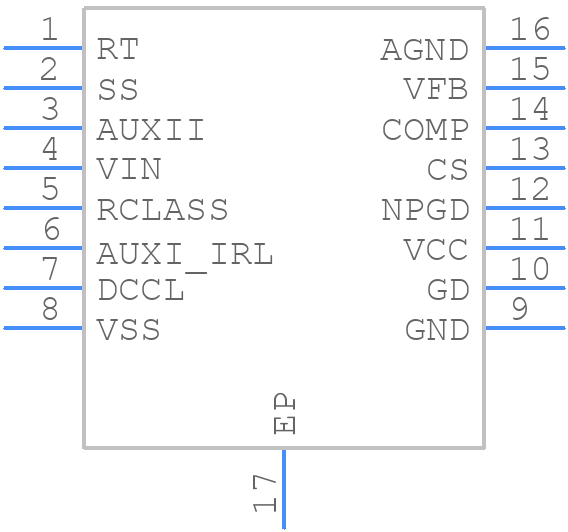

Symbol
PM8800A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
PM8800A - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP16_1
click to zoom
3D Models
PM8800A - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP16_1
click to zoom

PM8800A Details

  • Manufacturer Part Number:

    PM8800A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, HTSSOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    SUPPORT CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

PM8800A Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal heat dissipation.
  • The PM8800A can be configured using the STMicroelectronics' eDesignSuite software, which provides a graphical user interface to select the desired output voltage and current rating, and generates the corresponding configuration files for the device.
  • STMicroelectronics recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the input voltage, and a capacitance value of 10-22uF for the input capacitor and 10-47uF for the output capacitor, depending on the specific application requirements.
  • The PM8800A has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network, which sets the overcurrent threshold. The device will automatically shut down if the output current exceeds the set threshold.
  • The PM8800A has a maximum ambient temperature rating of 85°C, but it can be derated to 70°C for high-reliability applications. It's essential to ensure proper thermal management and heat sinking to maintain the device within its recommended operating temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PM8800A Overview

Use the download button to access the PM8800A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PM880, or try a keyword search, such as Network Interfaces

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
