PM8800ATR - STMicroelectronics

Description: Integrated IEEE 802.3af compliant PoE-PD interface and PWM controller with support of external source

Download PM8800ATR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

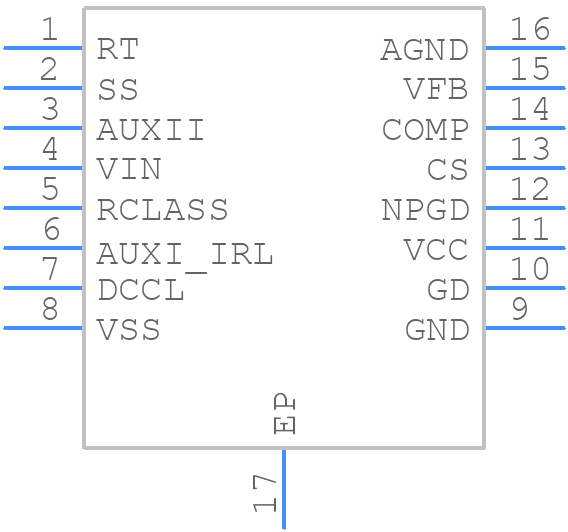

PM8800ATR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
PM8800ATR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP16 mechanical data and package dimensionssas
click to zoom
3D Models
PM8800ATR - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP16 mechanical data and package dimensionssas
click to zoom

PM8800ATR Details

  • Manufacturer Part Number:

    PM8800ATR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, HTSSOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    SUPPORT CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

PM8800ATR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended.
  • STMicroelectronics provides a configuration tool that allows you to customize the PM8800ATR's settings for your specific application. You can also refer to the application notes and user manuals for guidance on configuration and programming.
  • STMicroelectronics recommends using X5R or X7R ceramic capacitors with a voltage rating of 10V or higher for input and output capacitors. The recommended capacitance values are 10uF to 22uF for input capacitors and 10uF to 47uF for output capacitors.
  • STMicroelectronics recommends using the device's built-in diagnostic features, such as the fault detection and reporting mechanism, to identify the cause of the issue. You can also refer to the device's datasheet and application notes for troubleshooting guidelines.
  • Yes, the PM8800ATR is designed to meet the requirements of high-reliability and safety-critical applications. It has been qualified to various industry standards, including AEC-Q100 and IEC 61508. However, it is essential to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of your application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PM8800ATR Overview

Use the download button to access the PM8800ATR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PM880, or try a keyword search, such as Network Interfaces
