Part Image

PM8803 - STMicroelectronics

Description: IEEE 802.3at compliant PD interface  Works with power supplied from Ethernet LAN cables or from local auxiliary sources  Successful IEEE802.3at Layer1 classification indicator  Integrated 100 V, 0.45 Ω, 1 A hot-swap MOSFET  Accurate 140 mA typ. inrush current level  Programmable classification current  Programmable DC current limit up to 1 A  Integrated high voltage start-up bias regulator  Thermal shutdown protection  Current mode pulse width modulator  Programmable oscillator frequ

Download PM8803 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

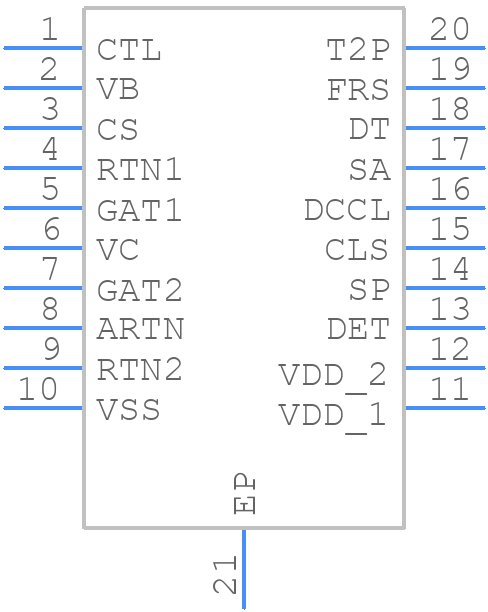

PM8803 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
PM8803 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP20*
click to zoom
3D Models
PM8803 - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP20*
click to zoom

PM8803 Details

  • Manufacturer Part Number:

    PM8803

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, HTSSOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.8

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Min:

    32.5 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

PM8803 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal heat dissipation.
  • The PM8803 can be configured using the I2C interface to set the output voltage and current limits. The STMicroelectronics software development kit (SDK) provides a graphical user interface (GUI) to configure the device, and the datasheet provides a detailed description of the I2C commands and registers.
  • The PM8803 can handle input voltages up to 28V, but the recommended operating range is 12V to 24V. Exceeding the maximum input voltage can damage the device.
  • The PM8803 has a built-in overcurrent protection feature that can be enabled through the I2C interface. The device can be configured to limit the output current to a specific value, and the OCP (Overcurrent Protection) pin can be used to monitor the output current and trigger an interrupt when the current limit is exceeded.
  • Yes, the PM8803 can be used in a redundant power supply configuration. The device has a built-in ORing function that allows multiple PM8803 devices to be connected in parallel, providing redundancy and ensuring that the output voltage remains stable even if one device fails.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PM8803 Overview

Use the download button to access the PM8803 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PM880, or try a keyword search, such as Switching Regulator or Controllers
