PM8804TR - STMicroelectronics

Description: PWM peak current mode controller for PoE and telecom systems

Download PM8804TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

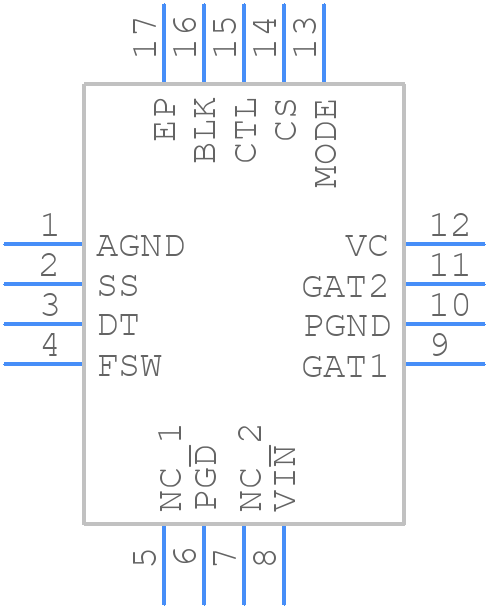

PM8804TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
PM8804TR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN 3.0x3.0x1.0 16L 0.5 mm pitch mechanical data
click to zoom
3D Models
PM8804TR - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN 3.0x3.0x1.0 16L 0.5 mm pitch mechanical data
click to zoom

PM8804TR Details

  • Manufacturer Part Number:

    PM8804TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    1000 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

PM8804TR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal heat dissipation.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 10uF to 22uF. Consult the application note AN5323 for more detailed guidance.
  • The maximum allowed voltage drop across the internal FETs is 1.5V. Exceeding this voltage drop may lead to reduced efficiency, increased power loss, and potential damage to the device.
  • The PM8804TR has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the output pin and the GND pin. The device will shut down when the current through Rs exceeds the overcurrent threshold (typically 2.5A). Consult the datasheet for more information on Rs calculation and implementation.
  • The recommended operating temperature range for the PM8804TR is -40°C to 125°C. Operating the device outside this range may affect its performance, reliability, and lifespan.
