PM8903ATR - STMicroelectronics

Description: STMicroelectronics PM8903ATR, Step Down DC-DC Converter, 3A, Adjustable, 0.6 → 2.5 V, 16-Pin VFQFPN

Download PM8903ATR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

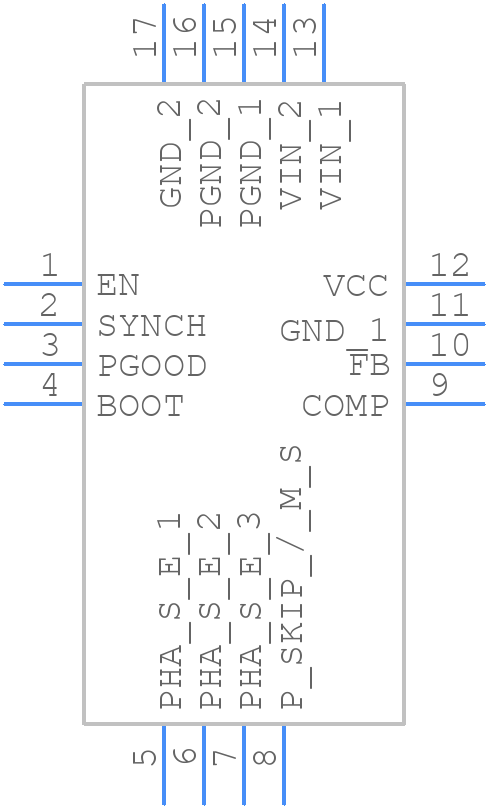

PM8903ATR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
PM8903ATR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN16 (3 x 3mm)--0
click to zoom
3D Models
PM8903ATR - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN16 (3 x 3mm)--0
click to zoom

PM8903ATR Details

  • Manufacturer Part Number:

    PM8903ATR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    3 X 3 MM, 1 MM HEIGHT, ROHS COMPLIANT, VFQFP-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    1

  • Additional Feature:

    ADJUSTABLE OUTPUT VOLTAGE DOWN TO 0.6 VOLT

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    2.8 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1100 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

PM8903ATR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended for the power traces.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a heat sink if necessary, and ensure good airflow around the device. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
  • Monitor the output voltage, current, and temperature to detect faults and protect the device. Implement over-voltage protection (OVP), under-voltage protection (UVP), and over-temperature protection (OTP) to prevent damage to the device and ensure reliable operation.
  • To optimize the PM8903ATR for low-power consumption, use the power-saving modes (e.g., low-power mode, shutdown mode), minimize the output voltage, and optimize the switching frequency. Additionally, consider using a low-power controller or a power management IC with built-in power-saving features.
  • Use a combination of EMI filtering techniques, such as ferrite beads, common-mode chokes, and capacitors, to reduce electromagnetic interference. Implement shielding techniques, such as metal shielding or shielding cans, to contain electromagnetic radiation.
