STMicroelectronics provides a recommended PCB layout in the application note AN5333, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider using a heat sink or thermal pad. Additionally, ensure that the device is operated within the specified junction temperature range (TJ) of -40°C to 150°C.
For EMI filtering and shielding, consider using a common-mode choke, ferrite beads, and capacitors to filter out high-frequency noise. Ensure proper grounding and shielding of the PCB, and use a metal shield or enclosure to contain radiated emissions. Follow the guidelines in the application note AN5333 for more information.
To optimize the PM8908TR for low-power consumption, use the low-power mode (LPM) feature, which reduces the quiescent current. Additionally, consider using a low-dropout regulator (LDO) or a switching regulator with high efficiency, and optimize the system's power management strategy to minimize power consumption during idle modes.
For testing and measurement, use a high-precision multimeter and oscilloscope to measure voltage, current, and power consumption. Follow the guidelines in the datasheet and application notes for specific test procedures, such as output voltage measurement, efficiency measurement, and thermal characterization.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PM8908TR Overview

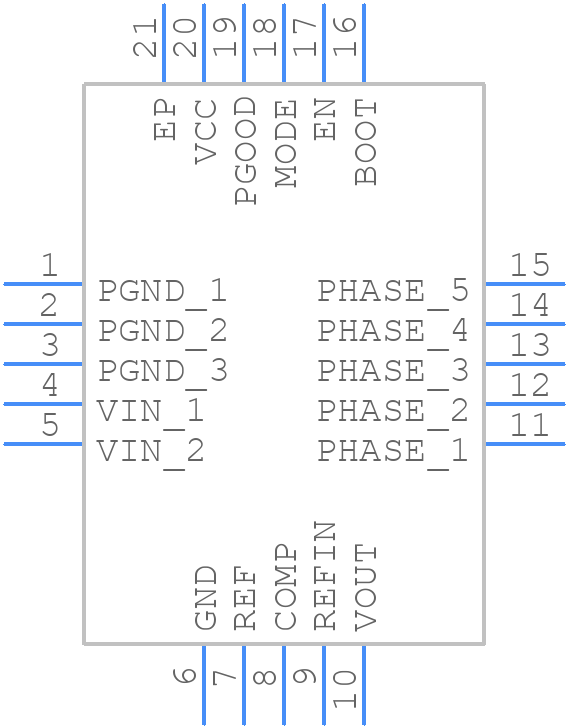

Use the download button to access the PM8908TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PM890,
or try a keyword search, such as Switching Regulator or Controllers
