PMA-183PLN+ - Mini-Circuits

Description: RF Amplifier SMT Low Noise Amplifier, 6000 - 18000 MHz, 50 Ohm

Download PMA-183PLN+ Model

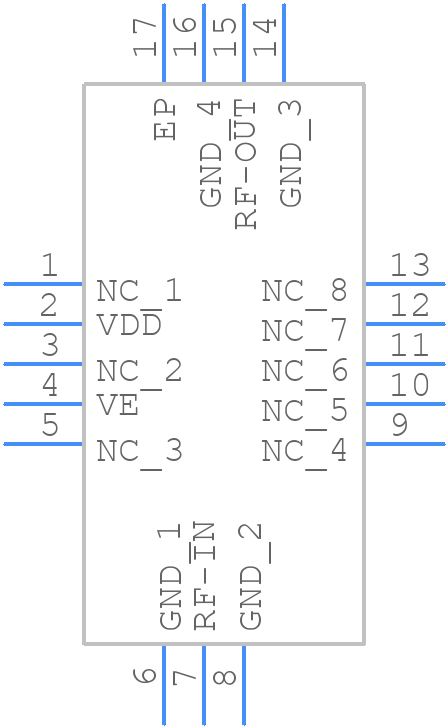

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PMA-183PLN+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - JV2579-DFN=16_
click to zoom
3D Models
PMA-183PLN+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - JV2579-DFN=16_
click to zoom

PMA-183PLN+ Details

  • Manufacturer Part Number:

    PMA-183PLN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    20.8 dB

  • Input Power-Max (CW):

    13 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    18000 MHz

  • Operating Frequency-Min:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    2.6 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Supply Current-Max:

    72 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.12

PMA-183PLN+ Frequently Asked Questions (FAQs)

  • A good grounding scheme is essential for optimal performance. It is recommended to use a solid ground plane and to connect the device's ground pins to it. The PCB layout should also be designed to minimize parasitic inductance and capacitance.
  • The device should be biased according to the recommended operating conditions specified in the datasheet. The bias voltage and current should be set to ensure the device operates in the linear region. It is also important to ensure the bias circuitry is stable and noise-free.
  • The maximum power handling capability of the PMA-183PLN+ is not explicitly stated in the datasheet. However, it is recommended to derate the power handling capability based on the operating frequency, temperature, and other environmental factors to ensure reliable operation.
  • To troubleshoot common issues, it is recommended to check the PCB layout, grounding scheme, and bias circuitry for any errors or inconsistencies. Also, ensure that the device is operated within the recommended operating conditions and that the input and output impedances are properly matched.
  • For high-power applications, it is essential to ensure proper thermal management to prevent overheating. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PMA-183PLN+ Overview

Use the download button to access the PMA-183PLN+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMA-1, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
