PMA-5456+ - Mini-Circuits

Description: RF Amplifier SMT Low Noise Amplifier, 50 - 6000 MHz, 50 ohms

Download PMA-5456+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

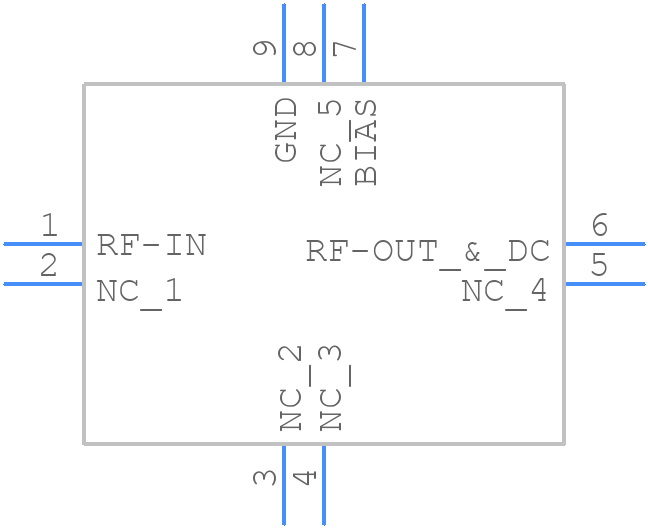

PMA-5456+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
PMA-5456+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DQ849
click to zoom
3D Models
PMA-5456+ - Mini-Circuits - 3D model - Quad Flat No-Lead - DQ849
click to zoom

PMA-5456+ Details

  • Manufacturer Part Number:

    PMA-5456+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, PLASTIC, CASE DQ849, MCLP, QFN-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.01

  • Additional Feature:

    LOW NOISE, HIGH RELIABILITY

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    12.7 dB

  • Input Power-Max (CW):

    20 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC8,.12SQ,25

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Supply Current-Max:

    80 mA

  • Surface Mount:

    YES

PMA-5456+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The PMA-5456+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a matching calculator tool on their website to help with the design.
  • The maximum safe operating temperature for the PMA-5456+ is 85°C. Operating the amplifier above this temperature can reduce its reliability and lifespan.
  • No, the PMA-5456+ is not designed to operate in a switching power supply environment. It's intended for linear power supply applications only. Using it in a switching power supply can cause damage to the amplifier.
  • To reduce the noise figure of the PMA-5456+, use a high-quality, low-noise power supply, and ensure good PCB layout and grounding practices. Additionally, consider using a noise-reducing component, such as a ferrite bead, in the power supply line.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PMA-5456+ Overview

Use the download button to access the PMA-5456+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMA-5, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
