PMA2-123LN+ - Mini-Circuits

Description: SMT Low Noise Amplifier, 500 - 12000 MHz, 50Ω

Download PMA2-123LN+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

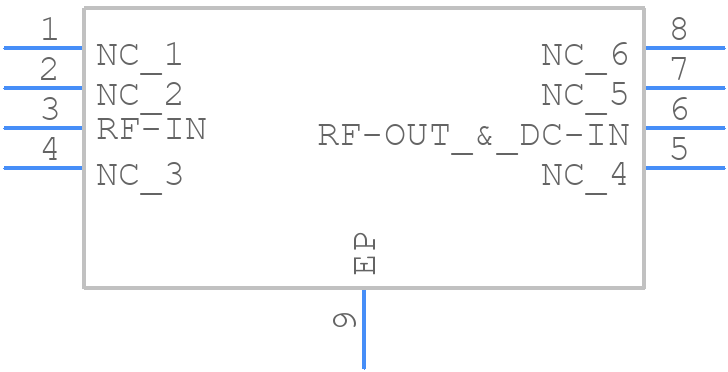

Symbol
PMA2-123LN+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
PMA2-123LN+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - PMA2-123LN+
click to zoom
3D Models
PMA2-123LN+ - Mini-Circuits - 3D model - Small Outline No-lead - PMA2-123LN+
click to zoom

PMA2-123LN+ Details

  • Manufacturer Part Number:

    PMA2-123LN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.27

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    14.5 dB

  • Input Power-Max (CW):

    8 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    12000 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    5/6 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    82 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.17

PMA2-123LN+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and to use a via-in-pad design to connect the amplifier's ground pins to the ground plane. Additionally, it's recommended to use a low-impedance path for the input and output signals to minimize parasitic inductance.
  • The PMA2-123LN+ is a self-biased amplifier, but it's still important to ensure the correct voltage supply and current limiting resistors are used. Mini-Circuits recommends using a voltage supply of 12V to 15V, and current limiting resistors of 10 ohms to 20 ohms to prevent overcurrent conditions.
  • The maximum input power that the PMA2-123LN+ can handle is +10 dBm. Exceeding this input power may cause the amplifier to saturate or even damage the device.
  • The PMA2-123LN+ has an input impedance of 50 ohms and an output impedance of 50 ohms. To ensure maximum power transfer, it's recommended to use impedance matching networks or transformers to match the amplifier's input and output impedance to the system's impedance.
  • The PMA2-123LN+ is specified to operate from -40°C to +85°C. However, it's recommended to derate the amplifier's performance at higher temperatures to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PMA2-123LN+ Overview

Use the download button to access the PMA2-123LN+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMA2-, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
