PMA2-153LN+ - Mini-Circuits

Description: RF Amplifier MMIC WIDEBAND LOW NOISE AMP

Download PMA2-153LN+ Model

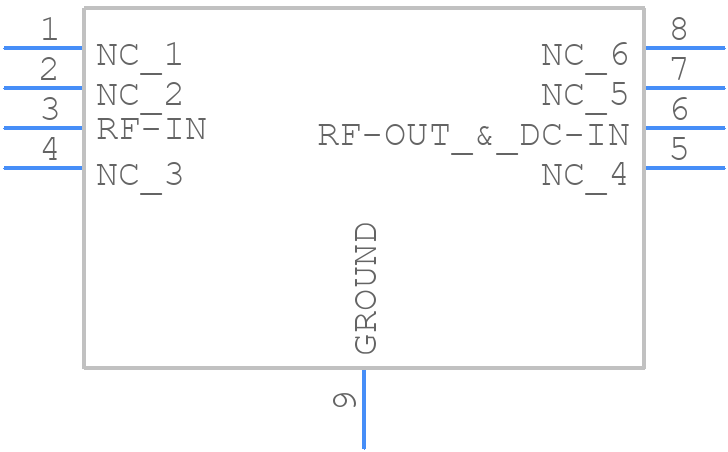

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PMA2-153LN+ - Mini-Circuits PCB footprint - Small Outline No-lead - Small Outline No-lead - MC1631-1_1
click to zoom
3D Models
PMA2-153LN+ - Mini-Circuits  - 3D model - Small Outline No-lead - MC1631-1_1
click to zoom

PMA2-153LN+ Details

  • Manufacturer Part Number:

    PMA2-153LN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2016-12-15

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.17

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    14.4 dB

  • Input Power-Max (CW):

    8 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    15000 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    5/6 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    85 mA

  • Surface Mount:

    YES

  • Technology:

    E-PHEMT

  • VSWR-Max:

    1.15

PMA2-153LN+ Frequently Asked Questions (FAQs)

  • A good grounding scheme is crucial for the PMA2-153LN+. Use a solid ground plane, and connect the amplifier's ground pins to it. Keep the input and output traces short and away from each other to minimize coupling. Use a 50-ohm microstrip line for the input and output traces.
  • The PMA2-153LN+ requires a bias voltage of 5V and a bias current of 120mA. Use a voltage regulator to ensure a stable 5V supply, and add a bias resistor (e.g., 22 ohms) to set the current. Verify the bias voltage and current using a multimeter.
  • The PMA2-153LN+ can handle input powers up to +10 dBm. Exceeding this may cause compression or damage to the amplifier. Use an attenuator or a limiter to ensure the input power is within the recommended range.
  • The PMA2-153LN+ has an input impedance of 50 ohms and an output impedance of 50 ohms. Use a 50-ohm transmission line or a matching network (e.g., a pi-network) to match the amplifier's input and output impedance to the system's impedance.
