- Part Number PMA2-183LN+
- Manufacturer Mini-Circuits
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - MC1631-1
- Released Date Oct 28, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
PMA2-183LN+ Details
-
Manufacturer Part Number:
PMA2-183LN+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
7
-
RF/Microwave Device Type:
LOW NOISE AMPLIFIER
-
Terminal Finish:
Matte Tin (Sn)
PMA2-183LN+ Frequently Asked Questions (FAQs)
-
The maximum input power that the PMA2-183LN+ can handle is +10 dBm. Exceeding this power may cause damage to the device.
-
To ensure the best possible noise figure performance, make sure to use a 50-ohm input and output impedance, and operate the device within its recommended operating conditions.
-
Yes, the PMA2-183LN+ is suitable for use as a receiver amplifier in wireless communication systems, such as cellular, Wi-Fi, and Bluetooth applications.
-
For optimal performance, use a low-inductance PCB layout with a solid ground plane, and ensure that the device is properly grounded to minimize thermal and electrical noise.
-
The PMA2-183LN+ requires a single +5V power supply, and the recommended bias current is 35 mA. Ensure that the power supply is well-regulated and low-noise to minimize the impact on amplifier performance.
Trust Checks
Community Provided
System Verified
Community Approved
PMA2-183LN+ Overview

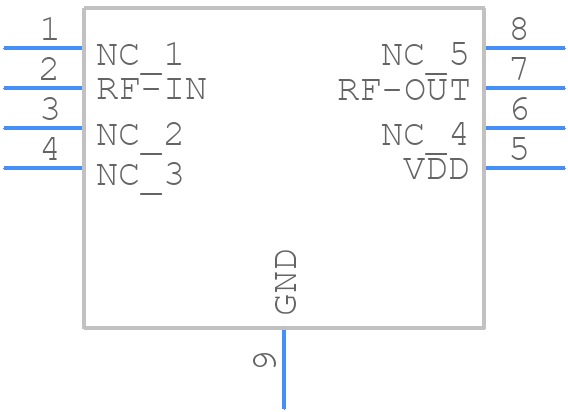

Use the download button to access the PMA2-183LN+ schematic symbol, PCB footprint, and 3D model.
