PMA2-63LN+ footprint, schematic symbol and 3D model by Mini-Circuits

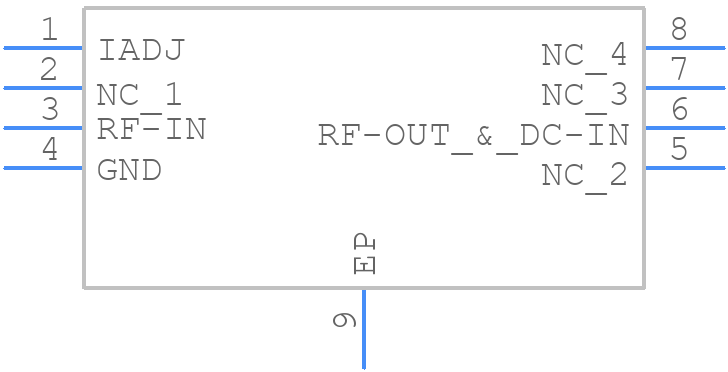

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PMA2-63LN+
Part Number PMA2-63LN+
Manufacturer Mini-Circuits
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - 2 x 2mm 8-lead MCLP
Released Date Jun 7, 2021
Last Modified Date Jul 24, 2023 6:28 AM UTC
Pinout / Pin List Click Here (Member Only)

PMA2-63LN+ Details

Manufacturer Part Number:
PMA2-63LN+
Rohs Code:
Yes
Part Life Cycle Code:
Active
Manufacturer:
Mini-Circuits
YTEOL:
6.83
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Gain:
13.1 dB
Input Power-Max (CW):
13 dBm
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
8
Operating Frequency-Max:
6000 MHz
Operating Frequency-Min:
400 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
SOLCC8(UNSPEC)
Power Supplies:
5 V
RF/Microwave Device Type:
WIDE BAND LOW POWER
Supply Current-Max:
61 mA
Surface Mount:
YES
Technology:
E-PHEMT
VSWR-Max:
2.03

PMA2-63LN+ Frequently Asked Questions (FAQs)

Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane under the amplifier. The input and output traces should be kept short and away from other signals. A low-impedance path to ground is essential for optimal performance.
The PMA2-63LN+ is a self-biased amplifier, but it's essential to ensure the input and output are properly terminated. A 50-ohm termination on the input and output is recommended. Additionally, the amplifier should be operated within the recommended voltage and current ranges.
The maximum input power the PMA2-63LN+ can handle without damage is +10 dBm. Exceeding this limit may cause permanent damage to the amplifier.
The PMA2-63LN+ is designed to operate up to 85°C. However, the amplifier's performance may degrade at high temperatures, resulting in reduced gain and increased noise figure. It's essential to ensure proper heat sinking and airflow to maintain optimal performance.
Yes, the PMA2-63LN+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout to ensure proper phasing and impedance matching.
