PMA3-15453+ - Mini-Circuits

Description: RF Amplifier SMT Gain Block, 15 - 45 GHz, 50 Ohm

Download PMA3-15453+ Model

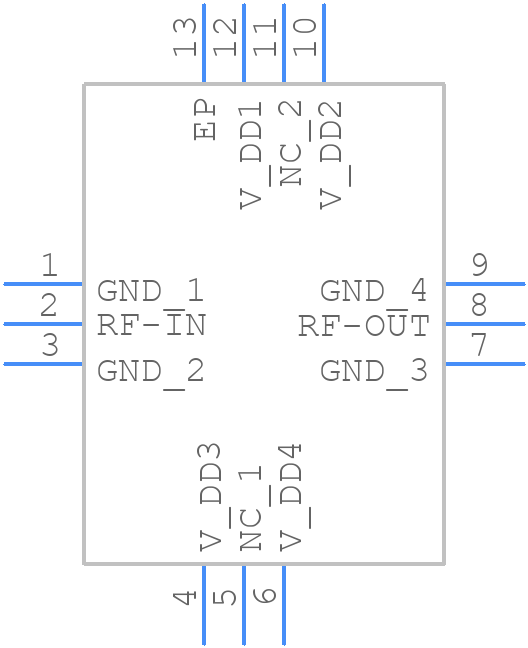

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PMA3-15453+ - Mini-Circuits PCB footprint - Other - Other - PMA3-15453+-2
click to zoom
3D Models
PMA3-15453+ - Mini-Circuits  - 3D model - Other - PMA3-15453+-2
click to zoom

PMA3-15453+ Details

  • Manufacturer Part Number:

    PMA3-15453+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    3A001.B.2

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8.4

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    7.2 dB

  • Input Power-Max (CW):

    23 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    45000 MHz

  • Operating Frequency-Min:

    15000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -45 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    128 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.2
