PMA3-223GLN+ - Mini-Circuits

Description: RF Amplifier MONOLITHIC AMPL/PMA

Download PMA3-223GLN+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

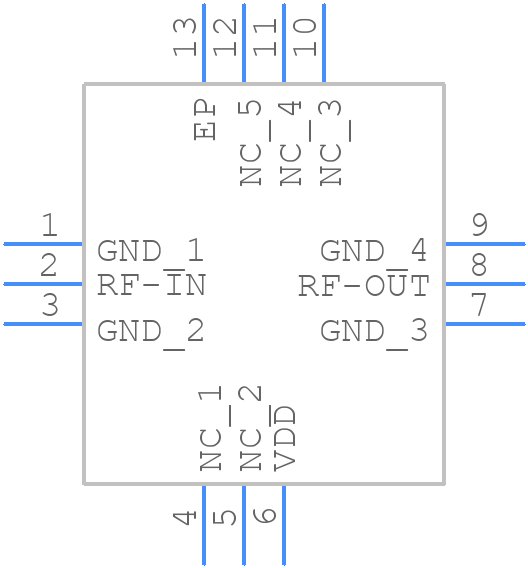

PMA3-223GLN+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
PMA3-223GLN+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 3 x 3mm 12-lead MCLP
click to zoom
3D Models
PMA3-223GLN+ - Mini-Circuits - 3D model - Quad Flat No-Lead - 3 x 3mm 12-lead MCLP
click to zoom

PMA3-223GLN+ Details

  • Manufacturer Part Number:

    PMA3-223GLN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.53

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    22.2 dB

  • Input Power-Max (CW):

    13 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    22000 MHz

  • Operating Frequency-Min:

    10000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12(UNSPEC)

  • Power Supplies:

    4 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Supply Current-Max:

    112 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.67

PMA3-223GLN+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The PMA3-223GLN+ has a relatively high power consumption, so proper heat dissipation is crucial. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The device's thermal resistance (θJA) is specified in the datasheet.
  • The PMA3-223GLN+ is designed for 50Ω input and output impedance. To achieve optimal performance, ensure that the input and output impedance of the surrounding circuitry is matched to 50Ω. This can be done using impedance matching networks or transmission lines.
  • The PMA3-223GLN+ requires a positive voltage supply (Vcc) and a negative voltage supply (Vee). The recommended biasing conditions are specified in the datasheet. Ensure that the voltage supplies are well-regulated and filtered to minimize noise and ripple.
  • The PMA3-223GLN+ has an operating temperature range of -40°C to +85°C. However, the device's performance may degrade at extreme temperatures. Ensure that the device operates within the recommended temperature range for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PMA3-223GLN+ Overview

Use the download button to access the PMA3-223GLN+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMA3-, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
