PMA3-352GLN+ - Mini-Circuits

Description: RF Amplifier SMT Low Noise Amplifier, 2500 - 3500 MHz, 50

Download PMA3-352GLN+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

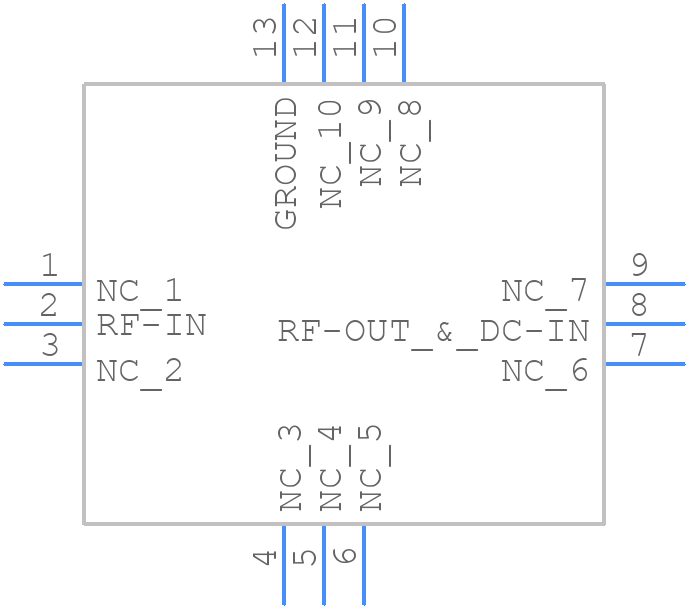

PMA3-352GLN+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
PMA3-352GLN+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 3 x 3mm 12-lead MCLP
click to zoom
3D Models
PMA3-352GLN+ - Mini-Circuits - 3D model - Quad Flat No-Lead - 3 x 3mm 12-lead MCLP
click to zoom

PMA3-352GLN+ Details

  • Manufacturer Part Number:

    PMA3-352GLN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    25 dB

  • Input Power-Max (CW):

    10 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    3500 MHz

  • Operating Frequency-Min:

    2500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12(UNSPEC)

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Supply Current-Max:

    80 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.92

PMA3-352GLN+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and to use a via-in-pad design to connect the amplifier's ground pins to the ground plane. Additionally, a low-inductance path should be maintained between the amplifier's input and output pins.
  • The PMA3-352GLN+ requires a bias voltage of 5V and a bias current of 120mA. Ensure that the bias voltage is well-regulated and that the bias current is limited to prevent overheating. A bias tee or a dedicated bias circuit can be used to provide the required bias conditions.
  • The maximum input power that the PMA3-352GLN+ can handle is -15dBm. Exceeding this input power may cause compression, distortion, or even damage to the amplifier.
  • The PMA3-352GLN+ has an input impedance of 50 ohms and an output impedance of 50 ohms. To achieve optimal performance, ensure that the input and output are matched to 50 ohms using impedance-matching networks or transmission lines.
  • The PMA3-352GLN+ is designed to operate over a temperature range of -40°C to +85°C. However, the amplifier's performance may degrade at extreme temperatures, and it is recommended to operate it within a temperature range of 0°C to +70°C for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PMA3-352GLN+ Overview

Use the download button to access the PMA3-352GLN+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMA3-, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
