PMA3-83LN+ - Mini-Circuits

Description: low noise, wideband, high IP3 monolithic amplifier, QFN-12

Download PMA3-83LN+ Model

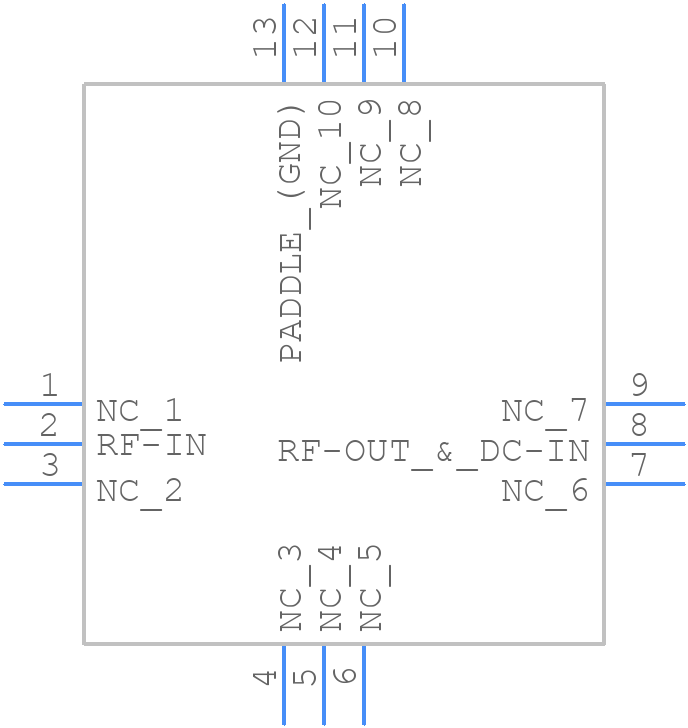

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PMA3-83LN+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-12
click to zoom
3D Models
PMA3-83LN+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - QFN-12
click to zoom

PMA3-83LN+ Details

  • Manufacturer Part Number:

    PMA3-83LN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.83

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    19.9 dB

  • Input Power-Max (CW):

    16 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Matte Tin (Sn)

PMA3-83LN+ Frequently Asked Questions (FAQs)

  • The maximum input power that the PMA3-83LN+ can handle is +10 dBm. Exceeding this value may cause damage to the amplifier.
  • To ensure the best possible noise figure performance, make sure to use a high-quality, low-noise power supply, and keep the amplifier away from sources of electromagnetic interference (EMI). Additionally, use a good quality input and output matching network to minimize reflections and ensure maximum power transfer.
  • Yes, the PMA3-83LN+ is suitable for use as a receiver amplifier in a satellite communication system. Its high gain, low noise figure, and high IP3 make it well-suited for this application.
  • The recommended operating temperature range for the PMA3-83LN+ is -40°C to +85°C. Operating the amplifier outside of this range may affect its performance and reliability.
  • Yes, the PMA3-83LN+ is suitable for use in high-reliability or military applications. Mini-Circuits offers a variety of screening and testing options to ensure the amplifier meets the required standards for these applications.
