PMA3-83MP+ - Mini-Circuits

Description: RF Amplifier SMT Gain Block, 400 - 8000 MHz, 50 Ohm

Download PMA3-83MP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

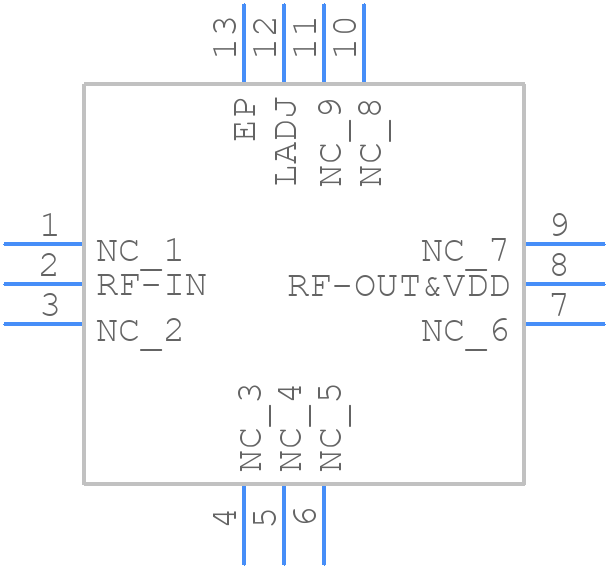

Symbol
PMA3-83MP+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
PMA3-83MP+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PMA3-83MP+
click to zoom
3D Models
PMA3-83MP+ - Mini-Circuits - 3D model - Quad Flat No-Lead - PMA3-83MP+
click to zoom

PMA3-83MP+ Details

  • Manufacturer Part Number:

    PMA3-83MP+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.01

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    16.7 dB

  • Input Power-Max (CW):

    17 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    400 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12(UNSPEC)

  • Power Supplies:

    8 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Supply Current-Max:

    175 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.14

PMA3-83MP+ Frequently Asked Questions (FAQs)

  • The maximum input power that the PMA3-83MP+ can handle is +10 dBm. Exceeding this value may cause damage to the amplifier.
  • To ensure the best possible noise figure performance, make sure to use a high-quality, low-noise power supply, and keep the amplifier away from sources of electromagnetic interference (EMI).
  • Yes, the PMA3-83MP+ is suitable for use as a receiver amplifier in wireless communication systems, thanks to its low noise figure and high gain.
  • For optimal performance, use a multi-layer PCB with a solid ground plane, and ensure that the amplifier is properly grounded using a low-inductance path. Consult the application note from Mini-Circuits for more details.
  • To troubleshoot issues with the PMA3-83MP+, check the power supply voltage, ensure proper grounding, and verify that the input and output impedances are matched. Consult the application note from Mini-Circuits for more troubleshooting tips.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PMA3-83MP+ Overview

Use the download button to access the PMA3-83MP+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMA3-, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
