PMD17K100 - SOLID STATE

Description: BJT, PNP, -100V, TO-3; Transistor Polarity:PNP; Collector Emitter Voltage V(br)ceo:-100V; Transition Frequency ft:-; Power Dissipation Pd:225W; DC Collector Current:-20A; DC Current Gain hFE:800hFE; No. of Pins:3Pins; Product Range:-RoHS Compliant: Yes

Download PMD17K100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

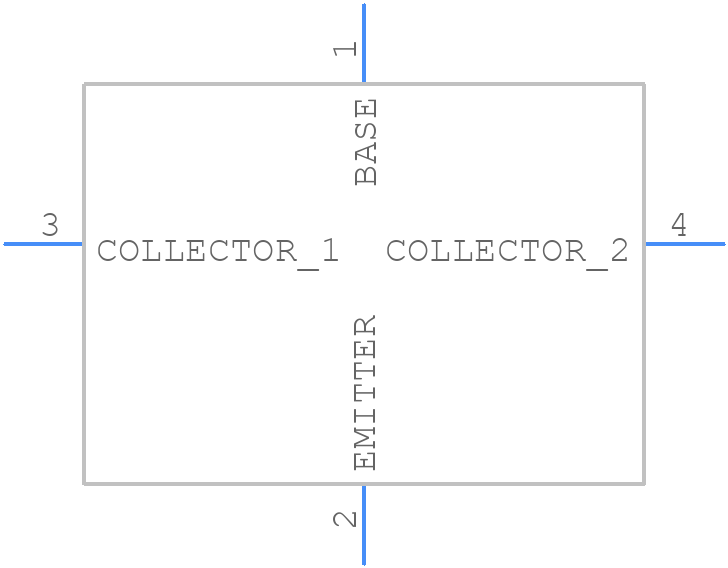

PMD17K100 - SOLID STATE - PCB symbol
click to zoom
PCB Footprints

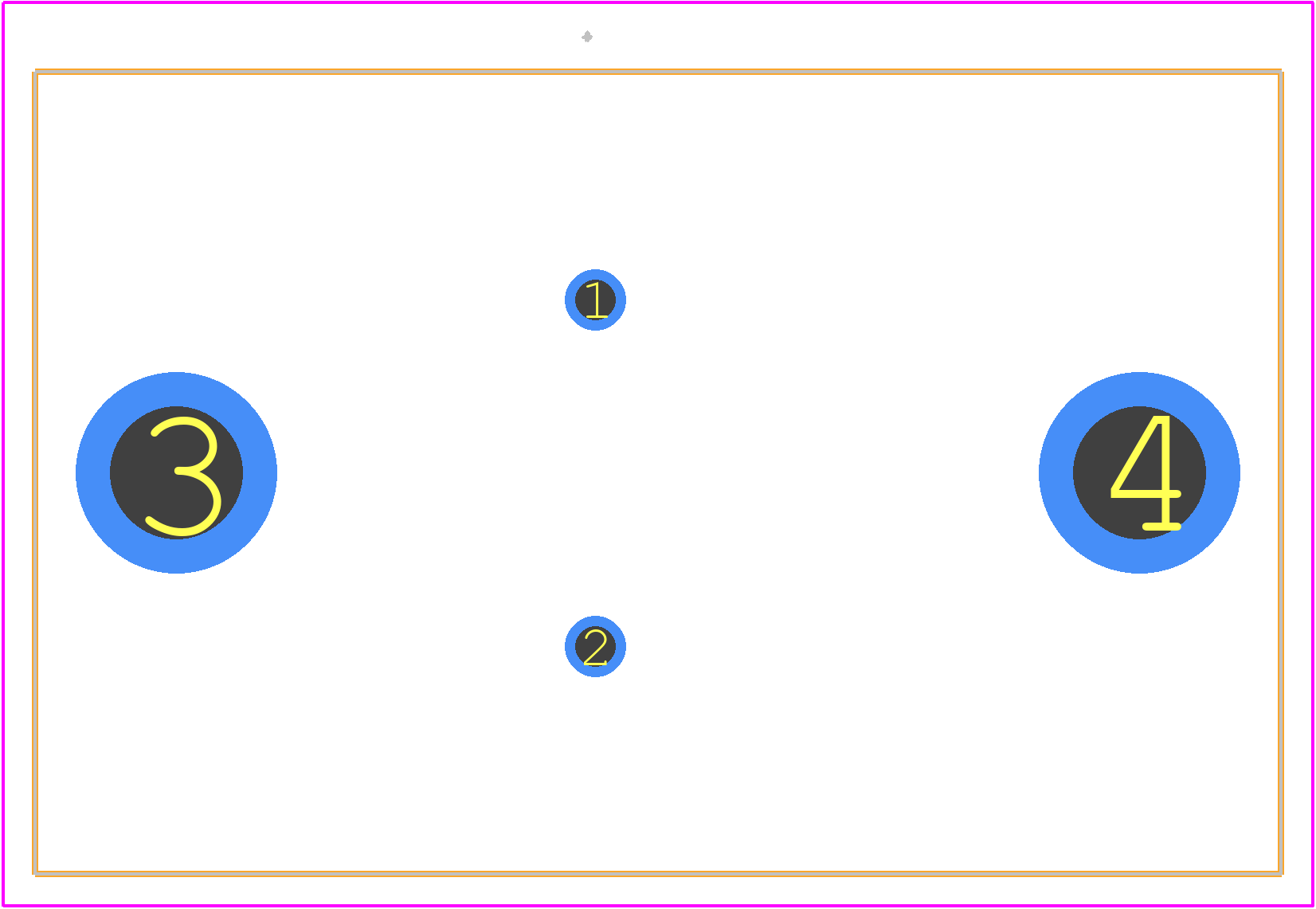

PMD17K100 - SOLID STATE PCB footprint - Other - Other - PMD17K100-6
