PMEG4020EPASX - Nexperia

Description: Schottky Diodes & Rectifiers 40V 2A MEGA Schottky

Download PMEG4020EPASX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

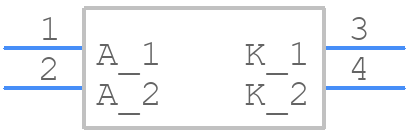

Symbol
PMEG4020EPASX - Nexperia - PCB symbol
click to zoom
PCB Footprints
PMEG4020EPASX - Nexperia PCB footprint - Other - Other - DFN2020D -3 (SOT1061D)
click to zoom
3D Models
PMEG4020EPASX - Nexperia - 3D model - Other - DFN2020D -3 (SOT1061D)
click to zoom

PMEG4020EPASX Details

  • Manufacturer Part Number:

    PMEG4020EPASX

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    SOT-1061D, DFN2020D-3, 3 PIN

  • Pin Count:

    3

  • Manufacturer Package Code:

    SOT1061D

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    6

  • Additional Feature:

    FREE WHEELING DIODE

  • Application:

    EFFICIENCY

  • Breakdown Voltage-Min:

    40 V

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.535 V

  • JESD-30 Code:

    S-PDSO-N3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    18 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Dissipation-Max:

    0.52 W

  • Reference Standard:

    IEC-60134

  • Rep Pk Reverse Voltage-Max:

    40 V

  • Reverse Current-Max:

    100 µA

  • Reverse Recovery Time-Max:

    0.006 µs

  • Reverse Test Voltage:

    40 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    TIN

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

PMEG4020EPASX Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. The datasheet provides a recommended PCB footprint, but a more detailed layout guide can be found in Nexperia's application notes.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended derating curves for the device. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature. Always check the device's thermal resistance and power dissipation ratings.
  • The PMEG4020EPASX has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent damage. For latch-up prevention, ensure that the device is properly biased and that the input and output pins are not subjected to excessive voltage or current.
  • Yes, the PMEG4020EPASX is AEC-Q100 qualified, making it suitable for automotive applications. However, it's essential to review the device's qualification data and ensure that it meets the specific requirements of your application.
  • To troubleshoot issues, start by reviewing the device's operating conditions, including voltage, current, and temperature. Check for any signs of physical damage, electrical overstress, or incorrect PCB layout. Use oscilloscopes and thermal imaging tools to help identify the root cause of the issue.
