PN22SJSA03QE - LITTELFUSE

PN22SJSA03QE Details

• Manufacturer Part Number:

  PN22SJSA03QE

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  Littelfuse Inc

• Actuator Length:

  0.157 inch

• Actuator Material:

  POLYAMIDE

• Actuator Travel:

  3.5052 mm

• Actuator Type:

  PLUNGER

• Additional Feature:

  ROHS COMPLIANT

• Body Breadth:

  6.8 mm

• Body Height:

  8.3 mm

• Body Length or Diameter:

  12 mm

• Center Contact Material:

  PHOSPHOR BRONZE

• Center Contact Plating:

  SILVER

• Contact Current(DC)-Max:

  0.2 A

• Contact (DC) Max Rating R Load:

  0.2A@30VDC

• Contact Resistance:

  0.03 mΩ

• Contact Voltage(DC)-Max:

  30 V

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  PHOSPHOR BRONZE

• End Contact Plating:

  SILVER

• Housing Material:

  STEEL

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  100000000 Ω

• Insulator Material:

  PHENOLIC

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Operating Force-Max:

  3.24 N

• Operating Temperature-Max:

  60 °C

• Operating Temperature-Min:

  -10 °C

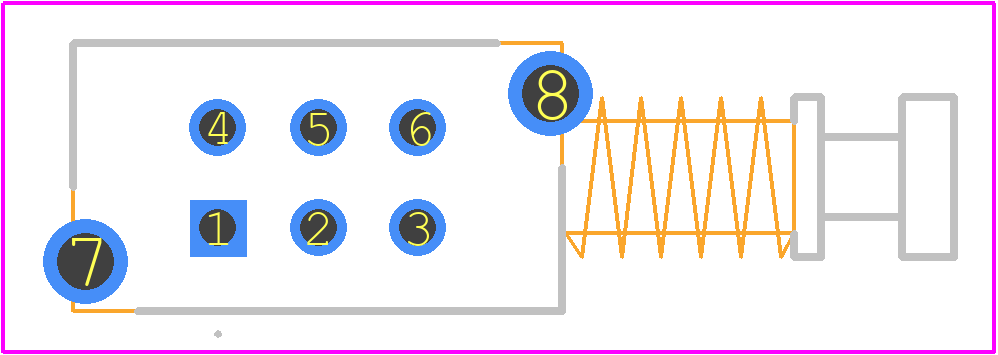

• PCB Hole Count:

  8

• Packing Method:

  ANTISTATIC BAG/TRAY

• Sealing:

  EPOXY TERMINAL SEALED

• Surface Mount:

  NO

• Switch Action:

  ALTERNATE

• Switch Function:

  DPDT

• Switch Type:

  MINIATURE SWITCH

• Terminal Finish:

  Silver (Ag)

• Terminal Material:

  BRASS

• Termination Type:

  SOLDER
