NXP provides a recommended PCB layout and design guide in their application note AN11579, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The PN5120A0HN/C2,557 can be configured for different NFC modes using the NXP NFC library and the device's registers. The library provides APIs for initializing the device, setting the mode, and controlling the NFC functionality. Refer to the NXP NFC library documentation and the PN5120A0HN/C2,557 datasheet for more information.
The maximum operating distance of the PN5120A0HN/C2,557 depends on various factors, including the antenna design, PCB layout, and environmental conditions. According to NXP, the typical operating distance is up to 10 cm. To optimize the operating distance, ensure proper antenna design and tuning, use a high-quality PCB material, and minimize electromagnetic interference (EMI) in the surrounding environment.
The PN5120A0HN/C2,557 has a built-in secure element that provides a secure environment for storing sensitive data and performing cryptographic operations. NXP provides a Secure Element (SE) library that allows developers to implement secure data storage and encryption using APIs for key management, data encryption, and secure authentication. Refer to the NXP SE library documentation for more information.
The PN5120A0HN/C2,557 has a typical power consumption of 50 mA in active mode and 10 μA in sleep mode. To manage power consumption, use power-saving modes, optimize the system design, and minimize the number of transactions. For thermal management, ensure proper heat dissipation through the PCB design, and consider using thermal pads or heat sinks if necessary.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PN5120A0HN/C2,557 Overview

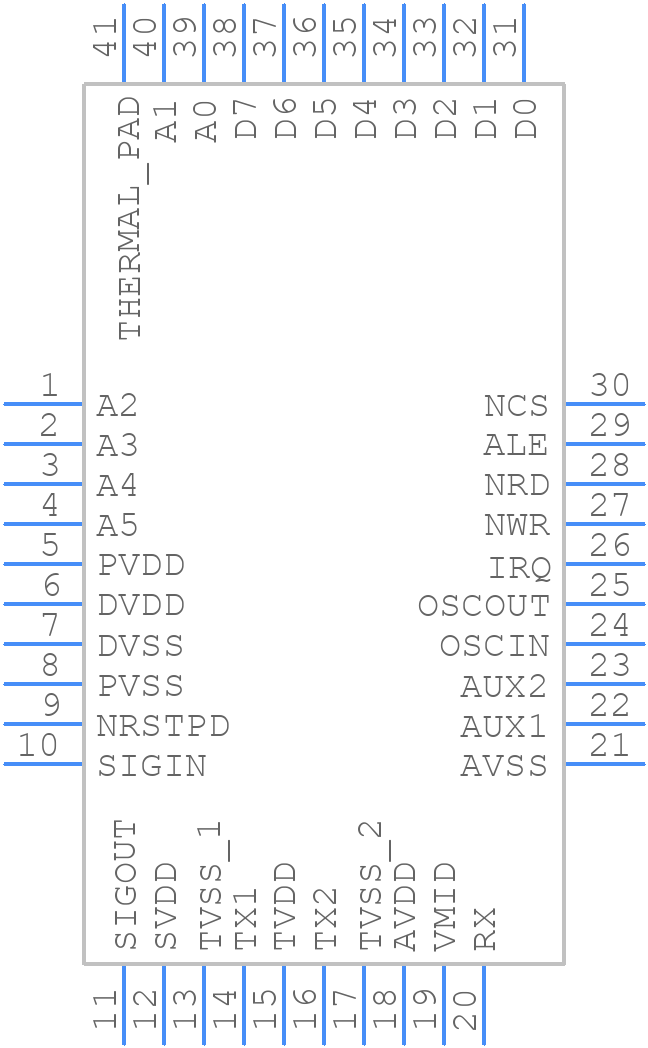

Use the download button to access the PN5120A0HN/C2,557 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PN512,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About NXP
NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more.
NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
