PN7160A1HN/C100E - NXP

Description: NFC/RFID Tags & Transponders NFC Plug and Play Controller with Integrated Firmware and NCI Interface

Download PN7160A1HN/C100E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

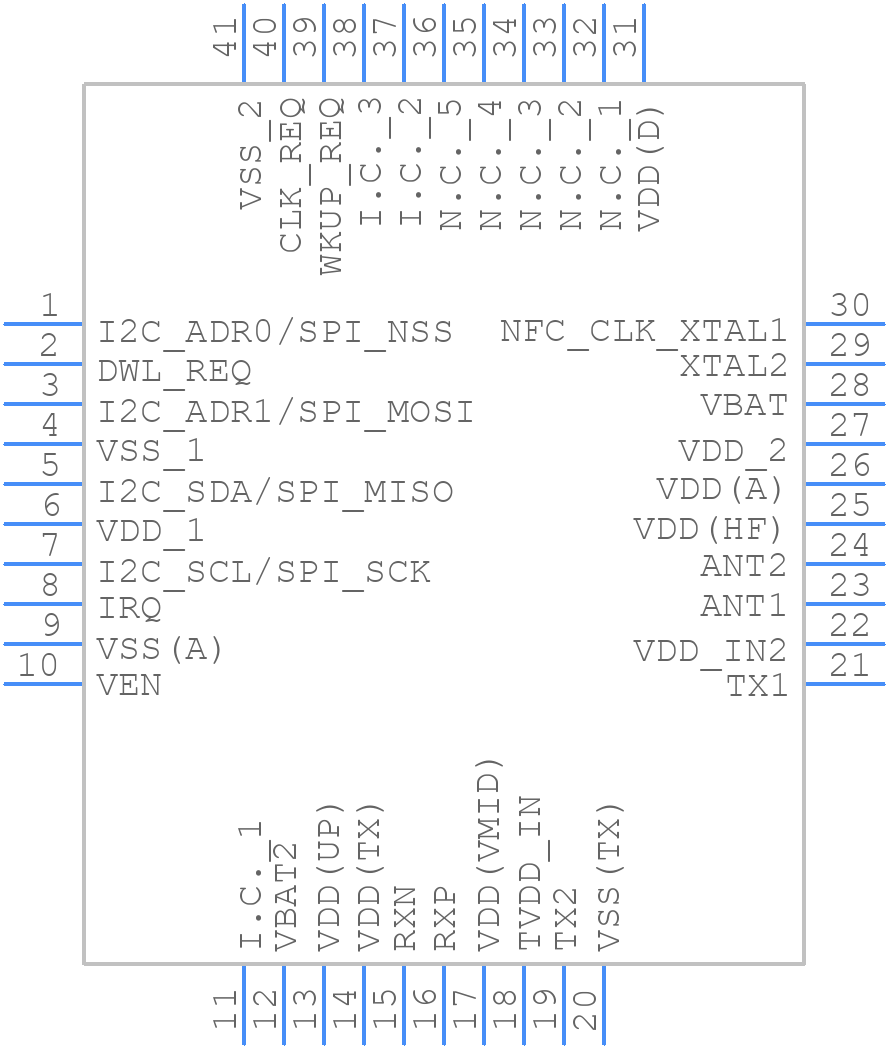

Symbol
PN7160A1HN/C100E - NXP - PCB symbol
click to zoom
PCB Footprints
PN7160A1HN/C100E - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT618-1_2022
click to zoom
3D Models
PN7160A1HN/C100E - NXP - 3D model - Quad Flat No-Lead - SOT618-1_2022
click to zoom

PN7160A1HN/C100E Details

  • Manufacturer Part Number:

    PN7160A1HN/C100E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQFN-40

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Additional Feature:

    ALSO AVAILABE WITH 3.3V SUPPLY

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.95 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLER

PN7160A1HN/C100E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the device. Refer to the NXP application note AN11542 for more details.
  • Follow the guidelines in the NXP application note AN11542 for PCB layout, component placement, and shielding. Ensure proper grounding, decoupling, and filtering to minimize electromagnetic interference (EMI).
  • Power up the device in the following sequence: VDD, AVDD, and then DVDD. Ensure that the power supplies are stable and within the recommended voltage ranges before applying the clock signal.
  • Use a heat sink or thermal pad to dissipate heat. Ensure good airflow around the device, and avoid blocking the thermal pads. Refer to the NXP application note AN11542 for thermal design guidelines.
  • The critical timing parameters include the clock frequency, clock duty cycle, and setup/hold times for the input signals. Refer to the datasheet for specific timing requirements and ensure that your design meets these parameters.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PN7160A1HN/C100E Overview

Use the download button to access the PN7160A1HN/C100E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PN716, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
