PN7161A1HN/C100E - NXP

Description: NFC/RFID Tags & Transponders NFC Plug and Play Controller with Integrated Firmware and NCI Interface

Download PN7161A1HN/C100E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

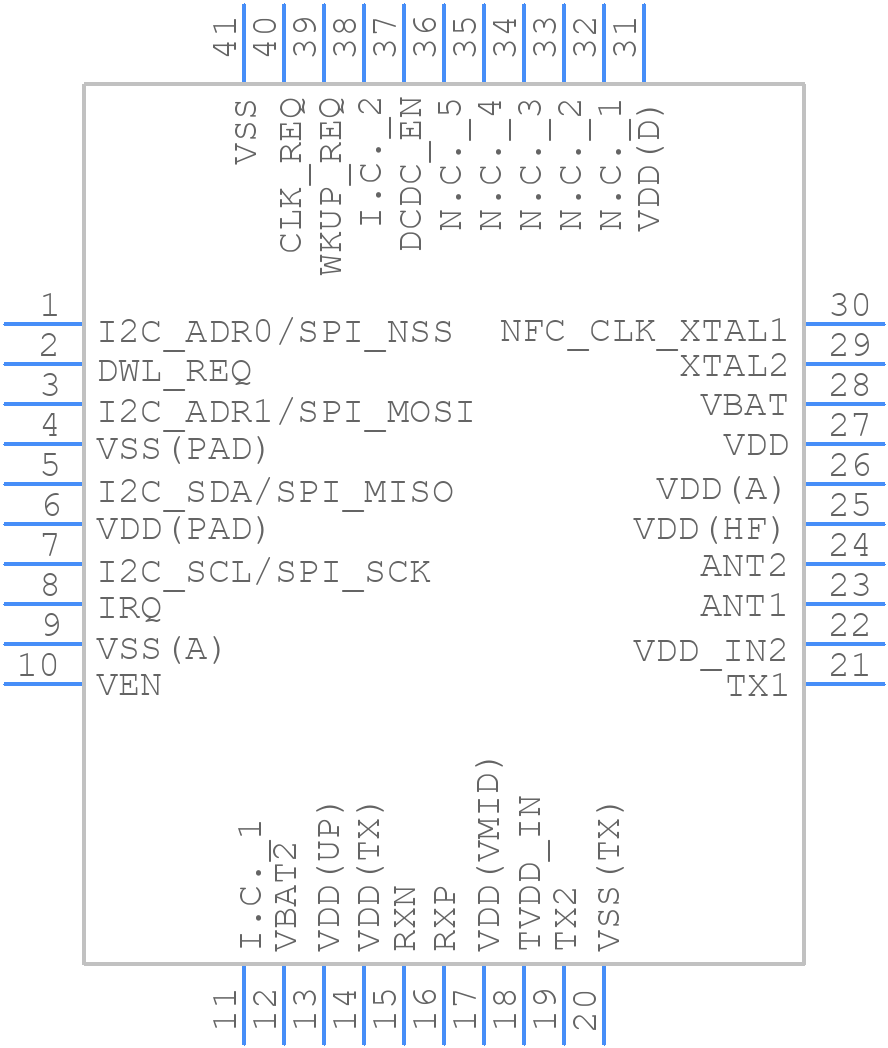

PN7161A1HN/C100E - NXP - PCB symbol
click to zoom
PCB Footprints
PN7161A1HN/C100E - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN40_(SOT618-1)
click to zoom
3D Models
PN7161A1HN/C100E - NXP - 3D model - Quad Flat No-Lead - HVQFN40_(SOT618-1)
click to zoom

PN7161A1HN/C100E Details

  • Manufacturer Part Number:

    PN7161A1HN/C100E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQFN-40

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Additional Feature:

    ALSO AVAILABE WITH 3.3V SUPPLY

  • JESD-30 Code:

    S-PQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.95 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLER

PN7161A1HN/C100E Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the PN7161A1HN/C100E is -40°C to 125°C.
  • To ensure proper power-on, make sure to follow the recommended power-up sequence: VDDIO, VDD, and then VBAT. Also, ensure that the power supply voltage is within the recommended range of 1.65V to 3.6V.
  • The internal voltage regulator helps to regulate the internal voltage supply to the device's core. It ensures that the device operates within the recommended voltage range, which is essential for optimal performance and reliability.
  • The PN7161A1HN/C100E has multiple power modes, including Active, Sleep, and Hibernate. To minimize power consumption, use the lowest power mode necessary for your application. You can also use the device's power gating feature to further reduce power consumption.
  • When designing the PCB, ensure that the device's power and ground pins are properly decoupled, and that the layout is optimized for minimal noise and EMI. Also, follow the recommended package footprint and pinout to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PN7161A1HN/C100E Overview

Use the download button to access the PN7161A1HN/C100E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PN716, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
