POE120PL-12L - COILCRAFT

Description: Audio Transformers / Signal Transformers 120W POE Planar 12V 10A 50uH

Download POE120PL-12L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

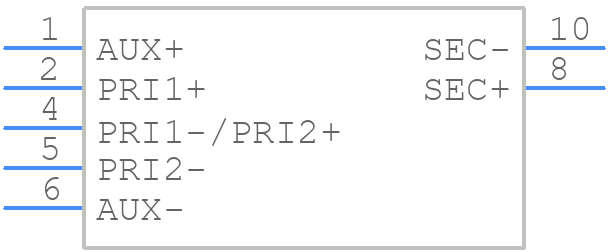

POE120PL-12L - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

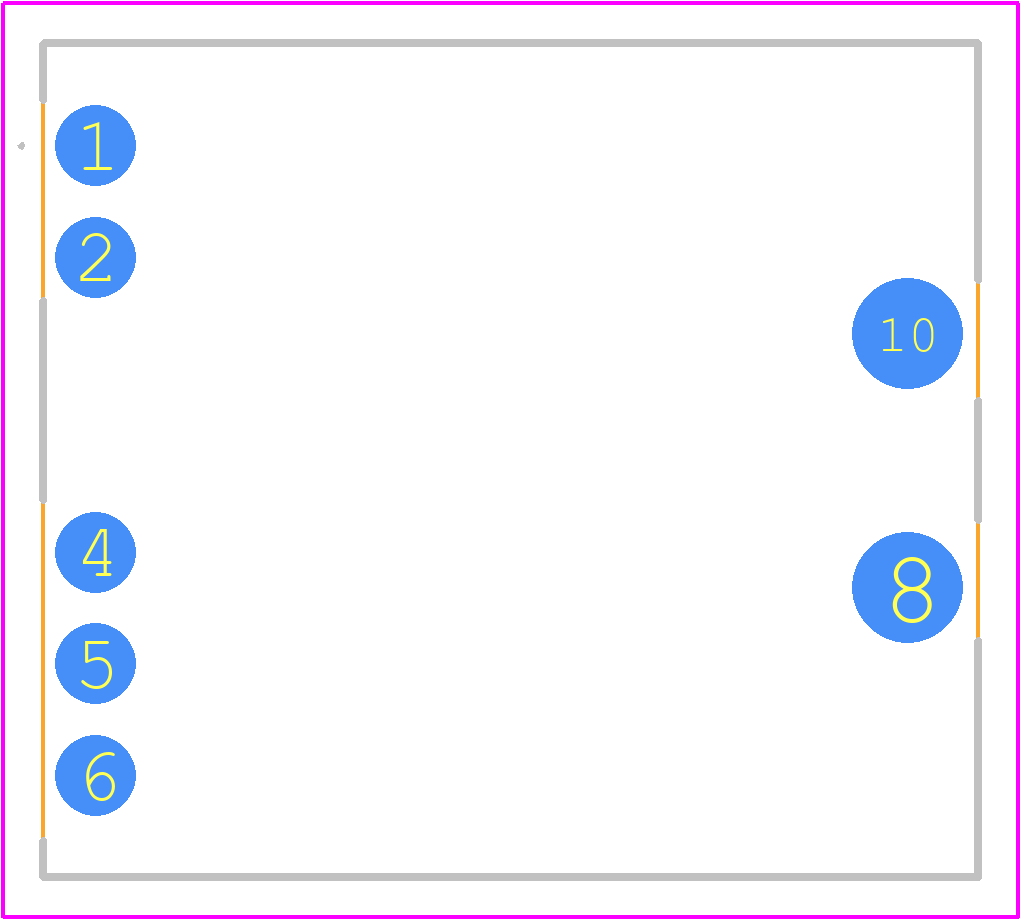

POE120PL-12L - COILCRAFT PCB footprint - Other - Other - POE120PL-12L-1
click to zoom
3D Models
POE120PL-12L - COILCRAFT - 3D model - Other - POE120PL-12L-1
click to zoom

POE120PL-12L Details

  • Manufacturer Part Number:

    POE120PL-12L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6

  • Additional Feature:

    LENGTH DIM INCLUDES TERMINAL ALSO

  • Approvals:

    AEC-Q200

  • Height:

    8.94 mm

  • Input Voltage-Max:

    72 V

  • Input Voltage-Min:

    36 V

  • JESD-609 Code:

    e3

  • Length:

    23.37 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    12 V

  • Packing Method:

    TRAY

  • Power Rating:

    120 W

  • Primary Inductance:

    50 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    20.83 mm

POE120PL-12L Frequently Asked Questions (FAQs)

  • Coilcraft recommends a symmetrical PCB layout with a solid ground plane and a minimum of 0.5 mm clearance around the inductor to minimize parasitic capacitance and ensure optimal performance.
  • While POE120PL-12L is rated for operation up to 125°C, it's essential to derate the current rating according to the temperature derating curve provided in the datasheet to ensure reliable operation.
  • Coilcraft provides an online inductor selection tool that takes into account factors such as operating frequency, current, and voltage to recommend the most suitable inductor value for your application.
  • The self-resonant frequency of POE120PL-12L is typically around 100 MHz, but it's essential to consult the datasheet or contact Coilcraft for specific information on the self-resonant frequency of the particular inductor you're using.
  • POE120PL-12L is designed to withstand moderate vibration levels, but it's essential to consult Coilcraft's vibration testing data and ensure that the inductor is properly secured to the PCB to prevent mechanical stress.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

POE120PL-12L Overview

Use the download button to access the POE120PL-12L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like POE12, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
