POE120PL-24L - COILCRAFT

Description: Audio Transformers / Signal Transformers 120W POE Planar 24V 5A 50uH –40°C to +125°C

Download POE120PL-24L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

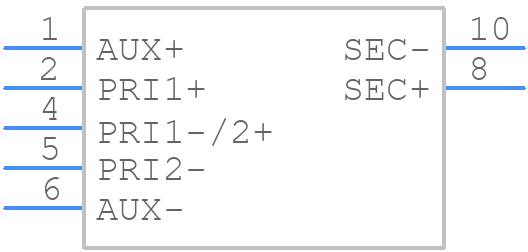

Symbol
POE120PL-24L - COILCRAFT - PCB symbol
click to zoom

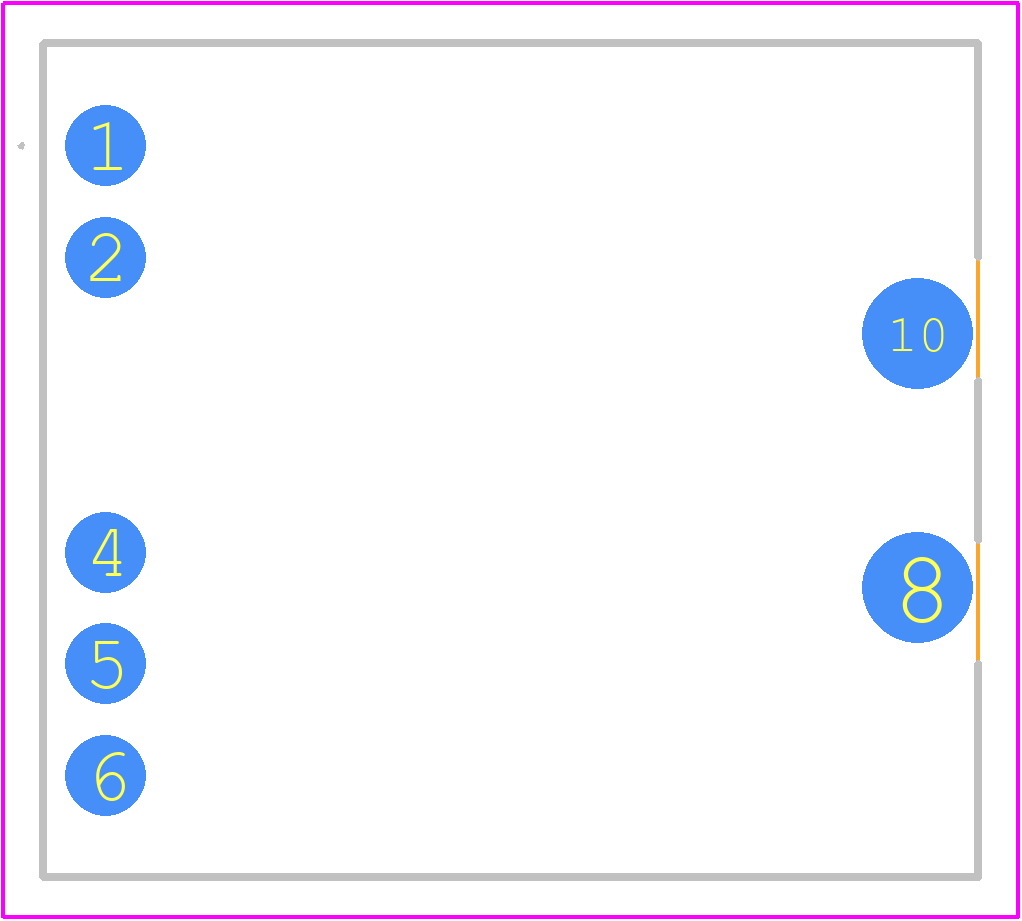

PCB Footprints
POE120PL-24L - COILCRAFT PCB footprint - Other - Other - POE120PL-24L-5
click to zoom
3D Models
POE120PL-24L - COILCRAFT - 3D model - Other - POE120PL-24L-5
click to zoom

POE120PL-24L Details

  • Manufacturer Part Number:

    POE120PL-24L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6

  • Additional Feature:

    LENGTH DIM INCLUDES TERMINAL ALSO

  • Approvals:

    AEC-Q200

  • Height:

    9.64 mm

  • Input Voltage-Max:

    72 V

  • Input Voltage-Min:

    36 V

  • Length:

    23.37 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    24 V

  • Packing Method:

    TRAY

  • Power Rating:

    120 W

  • Primary Inductance:

    50 µH

  • Surface Mount:

    YES

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    20.83 mm

POE120PL-24L Frequently Asked Questions (FAQs)

  • Coilcraft recommends a symmetrical PCB layout with a solid ground plane and a minimum of 0.5 mm clearance around the component to ensure optimal performance and minimize electromagnetic interference (EMI).
  • While POE120PL-24L is rated for operation up to 125°C, it's essential to consider the derating curves and thermal management strategies to ensure reliable operation in high-temperature environments. Consult Coilcraft's application notes for more information.
  • To ensure reliability in humid or moist environments, Coilcraft recommends conformal coating, potting, or using a moisture-resistant package option. Additionally, follow proper storage and handling procedures to prevent moisture absorption.
  • The maximum current rating for POE120PL-24L is 1.2 A, but this can vary depending on the operating frequency, temperature, and other factors. Consult the datasheet and Coilcraft's application notes for more information on current handling and derating.
  • While POE120PL-24L is designed to withstand normal handling and vibration, it's essential to consider the mechanical stress and vibration levels in your specific application. Coilcraft recommends following proper mounting and attachment procedures to ensure reliability in high-vibration or shock-prone environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

POE120PL-24L Overview

Use the download button to access the POE120PL-24L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like POE12, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
