POE120PL-50L - COILCRAFT

Description: Audio Transformers / Signal Transformers 120W POE Planar 5V 24A 50uH

Download POE120PL-50L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

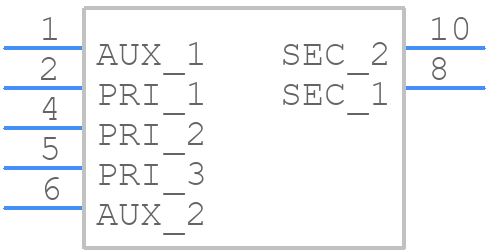

POE120PL-50L - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

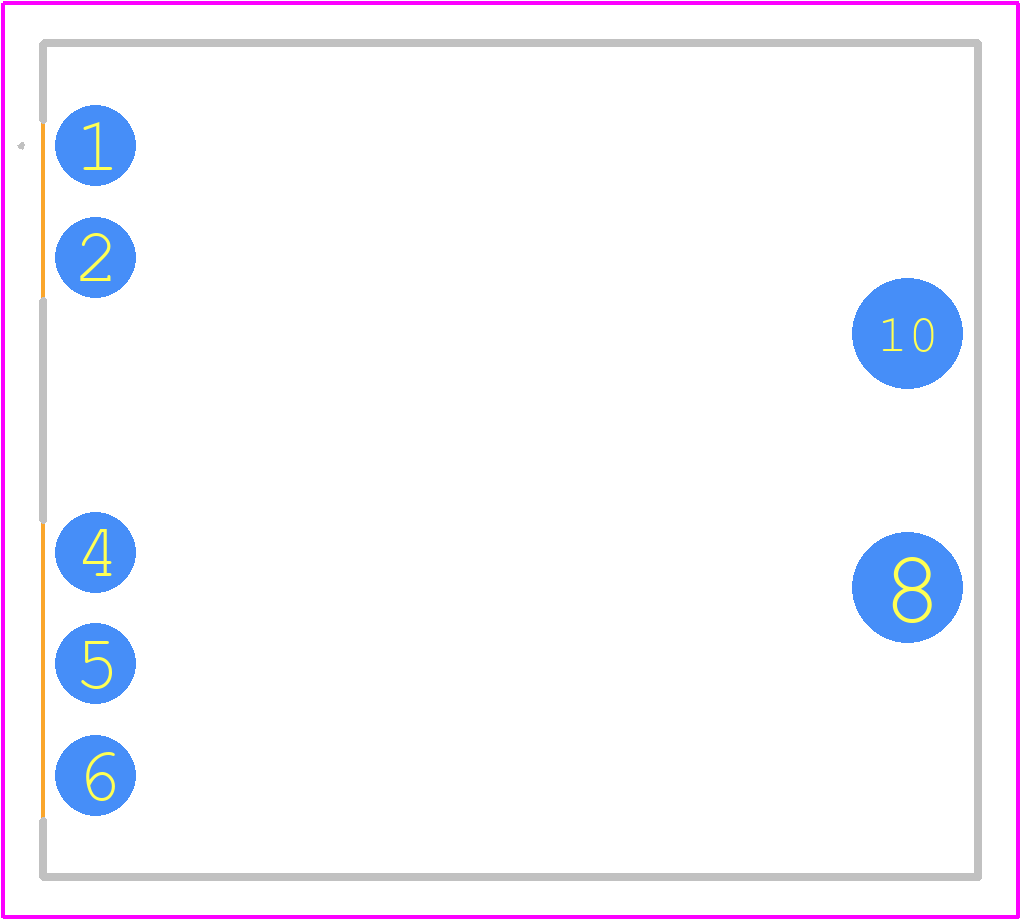

POE120PL-50L - COILCRAFT PCB footprint - Other - Other - 23.37 mm x 20.83 mm x 9.53 mm
click to zoom
3D Models
POE120PL-50L - COILCRAFT - 3D model - Other - 23.37 mm x 20.83 mm x 9.53 mm
click to zoom

POE120PL-50L Details

  • Manufacturer Part Number:

    POE120PL-50L

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6

  • Additional Feature:

    LENGTH DIM INCLUDES TERMINAL ALSO

  • Approvals:

    AEC-Q200

  • Height:

    9.53 mm

  • Input Voltage-Max:

    72 V

  • Input Voltage-Min:

    36 V

  • Length:

    23.37 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    5 V

  • Packing Method:

    TRAY

  • Power Rating:

    120 W

  • Primary Inductance:

    50 µH

  • Surface Mount:

    YES

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    20.83 mm

POE120PL-50L Frequently Asked Questions (FAQs)

  • Coilcraft recommends a symmetrical PCB layout with a solid ground plane and a minimum of 0.5 mm clearance around the component to ensure optimal performance and minimize electromagnetic interference.
  • While POE120PL-50L is rated for operation up to 125°C, it's essential to derate the current rating according to the temperature derating curve provided in the datasheet to ensure reliable operation.
  • To ensure reliability in high-vibration environments, Coilcraft recommends using a secure mounting method, such as soldering or using a suitable adhesive, and following the recommended PCB layout and thermal management guidelines.
  • The maximum allowable DC resistance for POE120PL-50L is 0.5 ohms, as specified in the datasheet. Exceeding this value may affect the component's performance and reliability.
  • While it's possible to use multiple POE120PL-50L components in parallel, it's essential to ensure that each component is properly matched and that the overall system design takes into account the increased inductance and potential resonance issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

POE120PL-50L Overview

Use the download button to access the POE120PL-50L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like POE12, or try a keyword search, such as SMPS Transformers
