POE13F-24LD - COILCRAFT

Description: Audio Transformers / Signal Transformers POE13F Flyback PoE 13uH 24 V 0.54 A

Download POE13F-24LD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

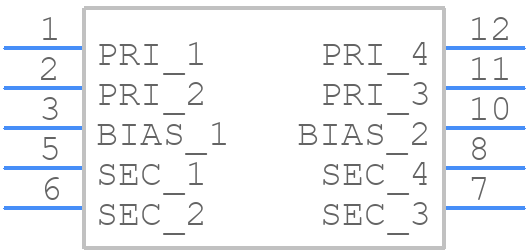

Symbol
POE13F-24LD - COILCRAFT - PCB symbol
click to zoom

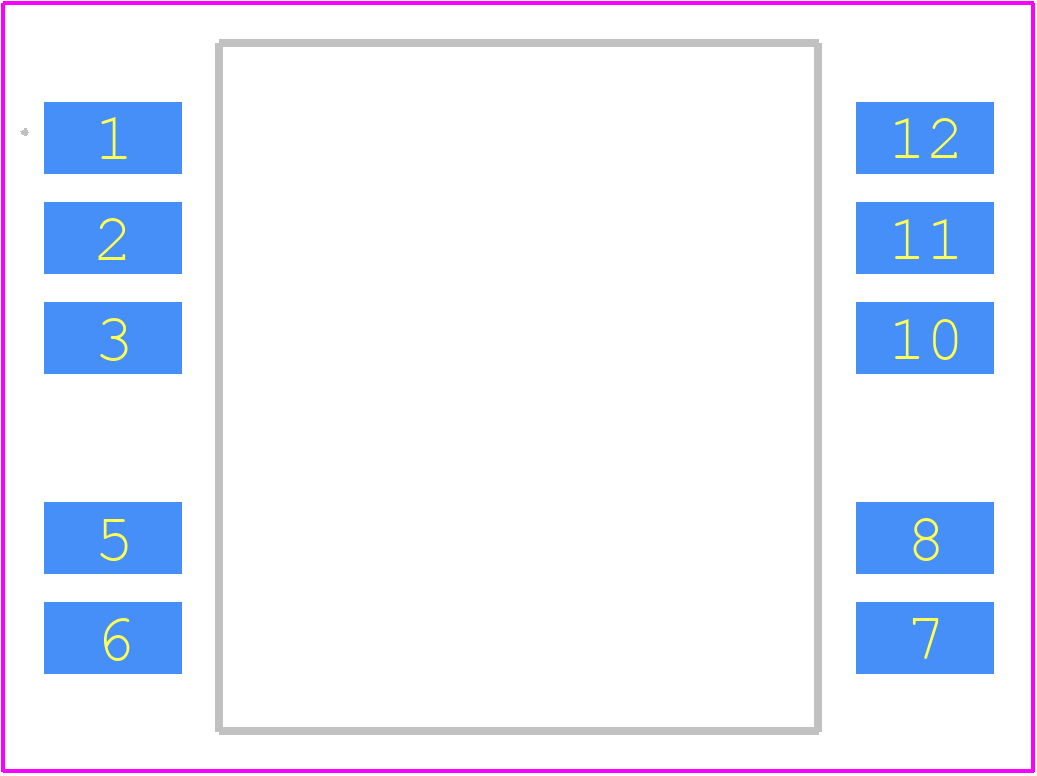

PCB Footprints
POE13F-24LD - COILCRAFT PCB footprint - Other - Other - POE13F-24LD-2
click to zoom
3D Models
POE13F-24LD - COILCRAFT - 3D model - Other - POE13F-24LD-2
click to zoom

POE13F-24LD Details

  • Manufacturer Part Number:

    POE13F-24LD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.78

  • Additional Feature:

    FLYBACK TRANSFORMER

  • Height:

    8.51 mm

  • Input Voltage-Max:

    72 V

  • Input Voltage-Min:

    36 V

  • Length:

    17.2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    3

  • Number of Secondary Winding:

    2

  • Operating Frequency-Max:

    250 kHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    24 V

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Power Rating:

    13 W

  • Primary Inductance:

    37 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver - Matte Tin - with Nickel barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    14.98 mm

POE13F-24LD Frequently Asked Questions (FAQs)

  • Coilcraft recommends a symmetrical PCB layout with a solid ground plane, and keeping the inductor away from other components to minimize electromagnetic interference. A minimum of 0.5 mm clearance around the inductor is recommended.
  • The POE13F-24LD is designed to minimize high-frequency noise and EMI due to its shielded construction and internal Faraday shield. However, additional filtering or shielding may be necessary depending on the specific application and environment.
  • The POE13F-24LD is rated for operation from -40°C to +125°C, but derating may be necessary for high-temperature applications. Consult the datasheet and Coilcraft's application notes for more information.
  • The POE13F-24LD is designed to withstand moderate vibration and shock, but its performance may be affected in extreme environments. Coilcraft recommends consulting their application notes and performing environmental testing to ensure the inductor meets the specific requirements of the application.
  • The POE13F-24LD is designed to minimize power losses and maximize system efficiency. Its low DC resistance and high Q factor help to reduce energy losses and improve overall system performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

POE13F-24LD Overview

Use the download button to access the POE13F-24LD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like POE13, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
