POE13F-50LD - COILCRAFT

Description: Audio Transformers / Signal Transformers POE13F Flyback PoE 13uH 5.0 V 2.6 A

Download POE13F-50LD Model

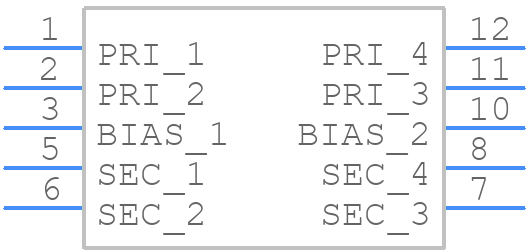

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

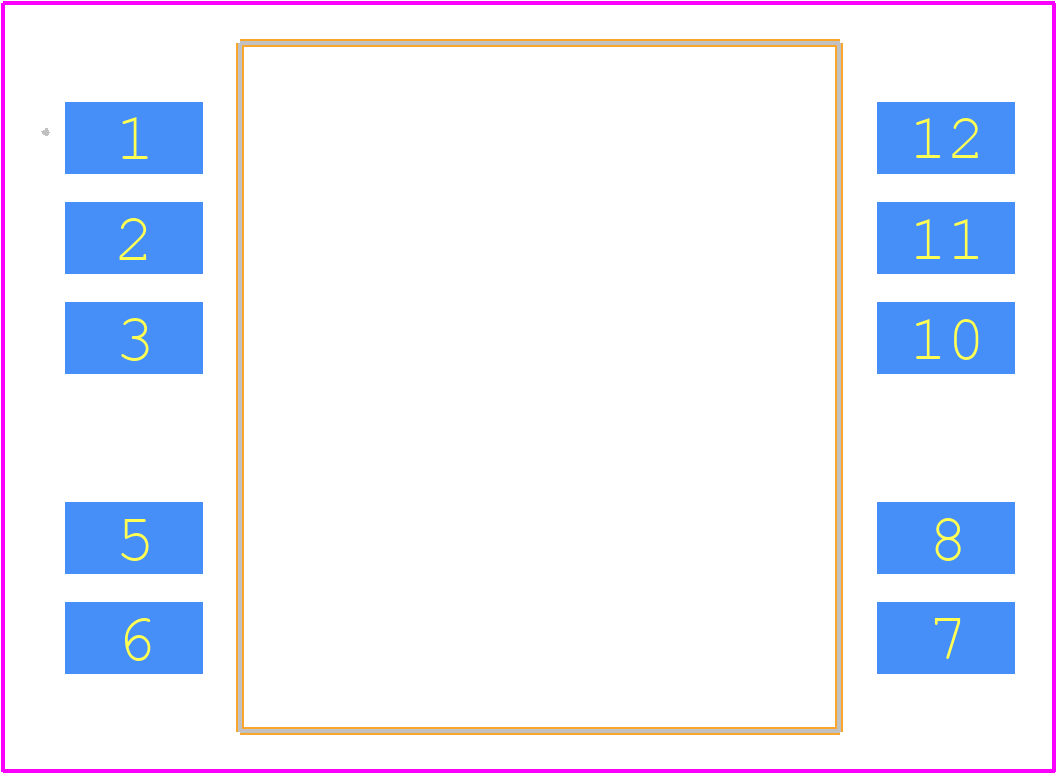

POE13F-50LD - COILCRAFT PCB footprint - Other - Other - POE13F-50LD-1
click to zoom
3D Models
POE13F-50LD - COILCRAFT  - 3D model - Other - POE13F-50LD-1
click to zoom

POE13F-50LD Details

  • Manufacturer Part Number:

    POE13F-50LD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.78

  • Additional Feature:

    FLYBACK TRANSFORMER

  • Height:

    8.51 mm

  • Input Voltage-Max:

    72 V

  • Input Voltage-Min:

    36 V

  • JESD-609 Code:

    e2

  • Length:

    17.2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    3

  • Number of Secondary Winding:

    2

  • Operating Frequency-Max:

    250 kHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    5 V

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Power Rating:

    13 W

  • Primary Inductance:

    40 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    14.98 mm

POE13F-50LD Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended PCB land pattern in their application notes, which can be found on their website. The recommended land pattern is designed to ensure optimal performance and reliability of the inductor.
  • While the POE13F-50LD is rated for operation up to 125°C, it's essential to consider the derating curves provided in the datasheet to ensure the inductor can handle the expected temperature range in your specific application.
  • To avoid saturation, ensure that the peak current in your design does not exceed the inductor's saturation current rating (Isat). You can also consider using a larger inductor or adding a current-limiting component to prevent saturation.
  • The SRF of POE13F-50LD is typically above 100 MHz. When operating near or above the SRF, the inductor's impedance changes, which can affect the performance of your circuit. Be sure to consider the SRF when designing your circuit and take necessary precautions to avoid unwanted resonances.
  • Yes, POE13F-50LD is suitable for use in switching regulator designs. However, it's crucial to consider the inductor's core loss, DC resistance, and saturation current when selecting an inductor for your specific switching regulator application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

POE13F-50LD Overview

Use the download button to access the POE13F-50LD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like POE13, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
