POE13P-12LD - COILCRAFT

Description: Audio Transformers / Signal Transformers POE13P Flyback PoE 13uH 12 V 1.08 A

Download POE13P-12LD Model

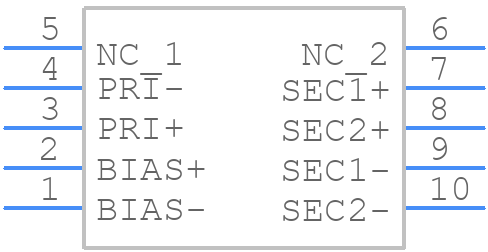

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
POE13P-12LD - COILCRAFT PCB footprint - Other - Other - 10LD SMD
click to zoom
3D Models
POE13P-12LD - COILCRAFT  - 3D model - Other - 10LD SMD
click to zoom

POE13P-12LD Details

  • Manufacturer Part Number:

    POE13P-12LD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.18

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINAL ALSO

  • Height:

    12.32 mm

  • Input Voltage-Max:

    72 V

  • Input Voltage-Min:

    36 V

  • Length:

    13.46 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Operating Frequency-Max:

    250 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    12 V

  • Packing Method:

    TAPE & REEL

  • Power Rating:

    13 W

  • Primary Inductance:

    127000 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver - Tin - with Nickel barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    13 mm

POE13P-12LD Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, low losses, and minimal electromagnetic interference (EMI).
  • To minimize the impact of SRF, ensure the inductor is operated below its SRF. You can also use a series resistor or capacitor to dampen the resonance. Additionally, consider using a shielded inductor or a different inductor with a higher SRF.
  • The maximum allowed voltage across the inductor is typically specified in the datasheet. Exceeding this voltage can reduce the inductor's current rating and lifespan. Always ensure the voltage across the inductor is within the specified range to maintain the rated current and prevent premature failure.
  • Calculate the inductor's power rating by considering the maximum current, voltage, and frequency of operation. Use the datasheet's current rating, and consider derating for temperature, frequency, and other environmental factors. Ensure the inductor's power rating exceeds the required current to maintain reliability and prevent overheating.
  • The POE13P-12LD has a maximum operating temperature of 125°C. Ensure proper heat dissipation by providing adequate airflow, using a heat sink if necessary, and keeping the inductor away from other heat sources. Follow Coilcraft's thermal guidelines and consider the inductor's thermal resistance to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

POE13P-12LD Overview

Use the download button to access the POE13P-12LD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like POE13, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
