POE300F-24LD footprint, schematic symbol and 3D model by COILCRAFT

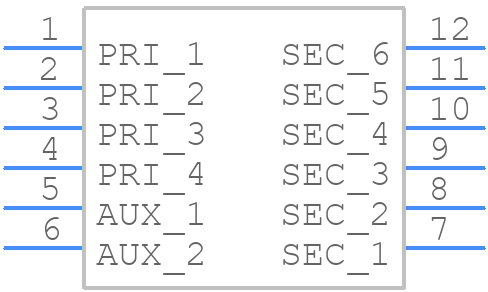

Symbol

click to zoom

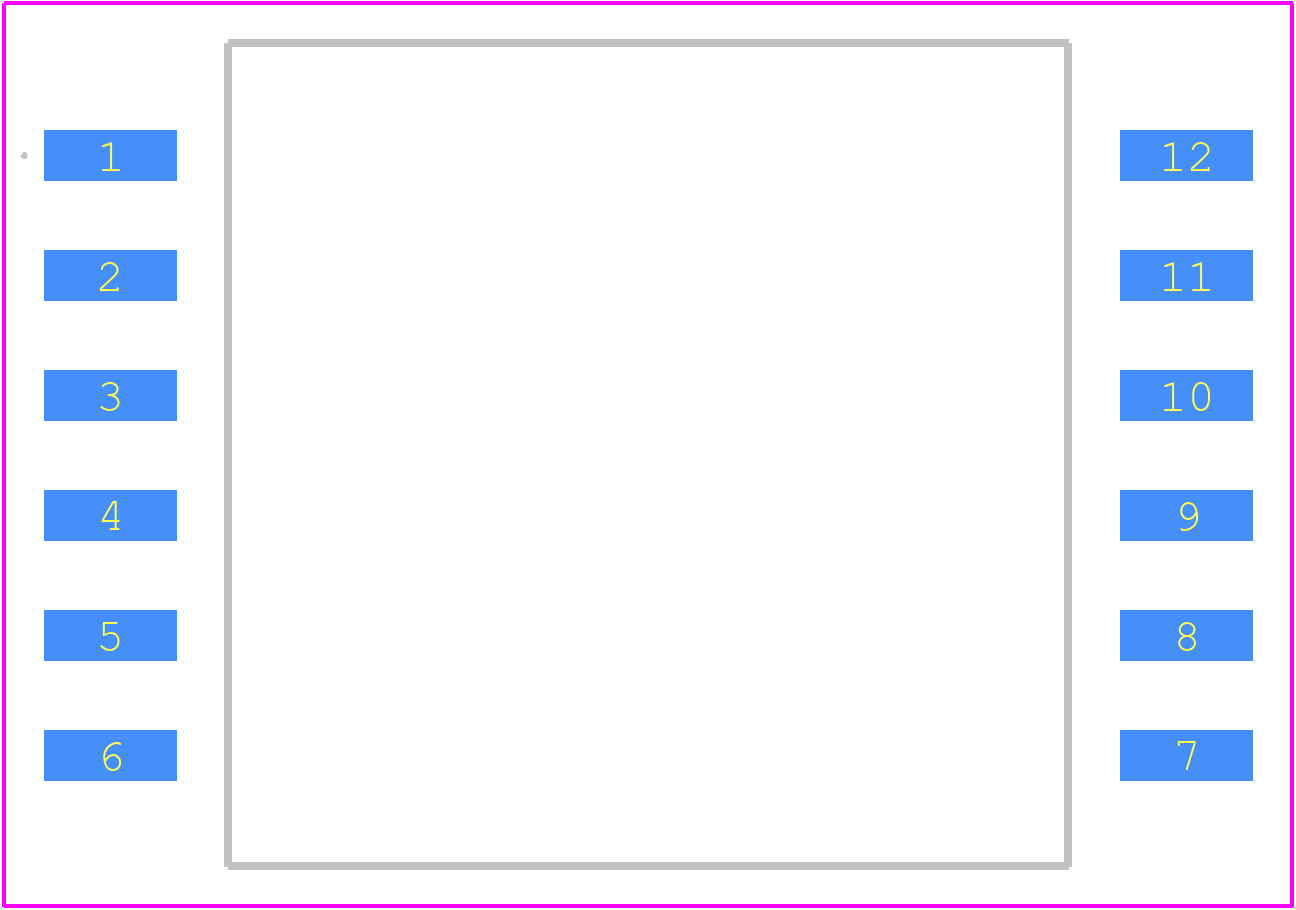

PCB Footprints

POE300F-24LD - COILCRAFT PCB footprint - Other - Other - POE300F-24LD-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for POE300F-24LD
Part Number POE300F-24LD
Manufacturer COILCRAFT
Pin Count 12
Part Category Transformer
Package Category Other
Footprint Name Other - POE300F-24LD-1
Released Date Oct 28, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

POE300F-24LD Details

Manufacturer Part Number:
POE300F-24LD
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Mainland China
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
6.23
Additional Feature:
HEIGHT DIMENSION INCLUDES TERMINAL ALSO, SWITCHING FREQUENCY IS 250 KHZ, TURNS RATIO: 1:0.67; 1:0.33
Height:
11.43 mm
Input Voltage-Max:
72 V
Input Voltage-Min:
36 V
Length:
21 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
3
Number of Secondary Winding:
3
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
24 V
Packing Method:
TAPE & REEL
Power Rating:
30 W
Primary Inductance:
42 µH
Surface Mount:
YES
Terminal Finish:
Tin/Silver - Matte Tin - with Nickel barrier
Transformer Type:
SMPS TRANSFORMER
Width:
20.57 mm

POE300F-24LD Frequently Asked Questions (FAQs)

Coilcraft recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip layout for the primary and secondary windings to minimize electromagnetic interference (EMI).
Ensure that the component is soldered correctly, and that the PCB is designed to minimize thermal stress. Also, consider using a thermally conductive material for the PCB substrate to help dissipate heat.
The maximum allowable voltage stress is 1500Vrms for the primary winding and 1000Vrms for the secondary winding. Exceeding these values may cause insulation breakdown or other damage.
Yes, the POE300F-24LD is designed to meet the requirements of IEEE 802.3bt Type 3 (Class 4) PoE, which supports up to 25.5W of power delivery.
Follow good EMC design practices, such as using a shielded enclosure, minimizing loop areas, and using filtering components as needed. Also, ensure that the transformer is properly grounded and that the PCB layout is optimized for EMI reduction.

Trust Checks

Community Provided

System Verified

Community Approved

POE300F-24LD Overview

Use the download button to access the POE300F-24LD schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like POE30, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
