POE300F-50LB - COILCRAFT

Description: COILCRAFT - POE300F-50LB - TRANSFORMER, FLYBACK, 1:0.14, 42UH, SMD

Download POE300F-50LB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

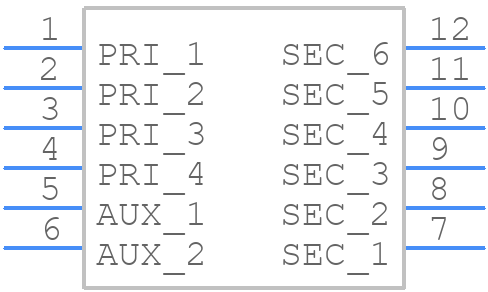

Symbol
POE300F-50LB - COILCRAFT - PCB symbol
click to zoom

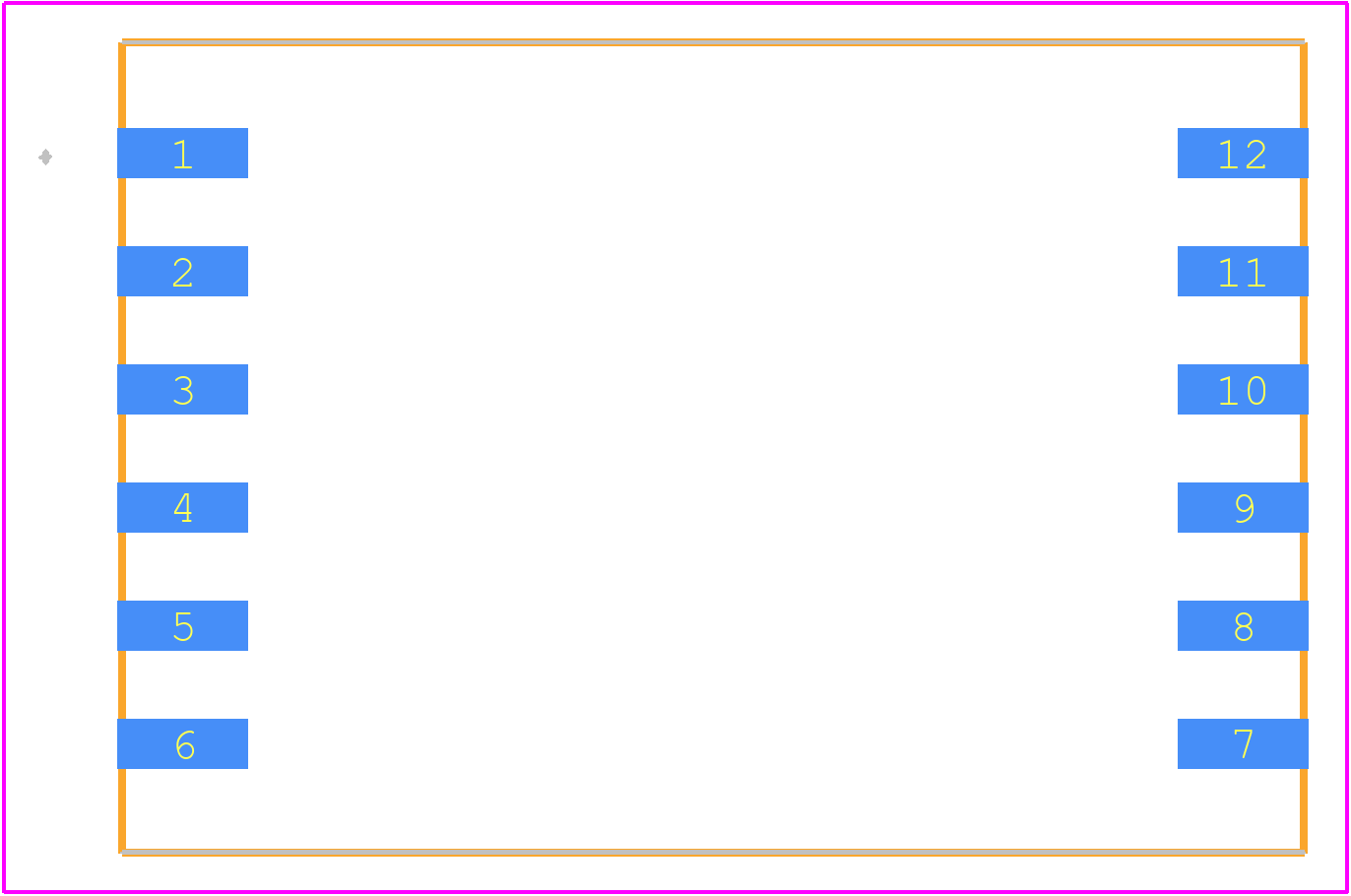

PCB Footprints
POE300F-50LB - COILCRAFT PCB footprint - Other - Other - POE300F-50LB-2
click to zoom
3D Models
POE300F-50LB - COILCRAFT - 3D model - Other - POE300F-50LB-2
click to zoom

POE300F-50LB Details

  • Manufacturer Part Number:

    POE300F-50LB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    0

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINAL ALSO, SWITCHING FREQUENCY IS 250 KHZ, TURNS RATIO: 1:0.14; 1:0.33

  • Height:

    11.43 mm

  • Input Voltage-Max:

    72 V

  • Input Voltage-Min:

    36 V

  • Length:

    21 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    3

  • Number of Secondary Winding:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    5 V

  • Packing Method:

    TAPE & REEL

  • Power Rating:

    30 W

  • Primary Inductance:

    42 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver - Tin - with Nickel barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    20.57 mm

POE300F-50LB Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the POE300F-50LB is a rectangular pad with dimensions of 0.25 inches (6.4 mm) x 0.15 inches (3.8 mm) with a 0.05 inches (1.3 mm) radius corner.
  • Yes, the POE300F-50LB is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the inductor's performance may degrade at elevated temperatures, so it's essential to consider the temperature coefficient of inductance and resistance when designing the circuit.
  • To ensure the POE300F-50LB meets your specific inductance requirements, you can use Coilcraft's online inductor selection tool or consult with a Coilcraft application engineer to determine the optimal inductor value and tolerance for your application.
  • Yes, the POE300F-50LB is designed for automated assembly and reflow soldering. The component is compatible with standard SMT assembly processes and can withstand the temperatures and soldering times associated with reflow soldering.
  • The maximum current rating for the POE300F-50LB is 50 A. However, the actual current handling capability may be lower depending on the operating frequency, temperature, and other application-specific factors.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

POE300F-50LB Overview

Use the download button to access the POE300F-50LB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like POE30, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
