Coilcraft recommends a symmetrical PCB layout with a solid ground plane, and keeping the transformer as close to the PCB surface as possible to minimize radiated emissions. Additionally, keeping the primary and secondary windings separate and using a shielded layout can help reduce electromagnetic interference (EMI).
The POE36PR-12ED is designed to meet safety and regulatory requirements such as UL 60950-1, IEC 60950-1, and EN 60950-1. However, it is the responsibility of the system designer to ensure that the overall system meets these requirements. This includes proper insulation, creepage, and clearance distances, as well as meeting safety standards for isolation, voltage, and current.
The POE36PR-12ED has an operating temperature range of -40°C to +125°C, with a maximum storage temperature range of -40°C to +150°C. However, the transformer's performance and lifespan may be affected by extreme temperatures, so it's essential to consider the specific application's temperature requirements.
The POE36PR-12ED is designed to withstand moderate vibration and shock, but it's essential to consider the specific environmental requirements of the application. Coilcraft recommends following the guidelines in the datasheet for vibration and shock testing, and consulting with their application engineers for custom testing or special requirements.
Common issues with the POE36PR-12ED can often be attributed to improper PCB layout, inadequate heat sinking, or incorrect component selection. Coilcraft recommends following their application notes and troubleshooting guides, as well as consulting with their technical support team for assistance with specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
POE36PR-12ED Overview

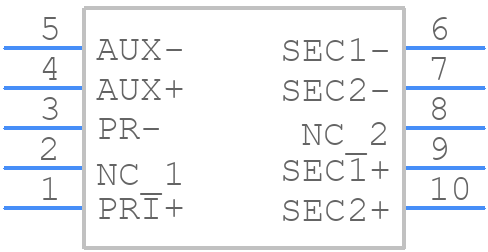

Use the download button to access the POE36PR-12ED schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like POE36,
or try a keyword search, such as SMPS Transformers
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
