POE40Q-12ED footprint, schematic symbol and 3D model by COILCRAFT

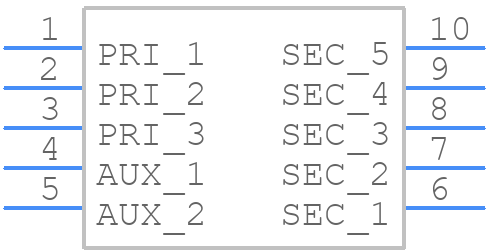

Symbol

click to zoom

PCB Footprints

POE40Q-12ED - COILCRAFT PCB footprint - Other - Other - POE40Q-12ED-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for POE40Q-12ED
Part Number POE40Q-12ED
Manufacturer COILCRAFT
Pin Count 10
Part Category Transformer
Package Category Other
Footprint Name Other - POE40Q-12ED-4
Released Date Mar 17, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

POE40Q-12ED Details

Manufacturer Part Number:
POE40Q-12ED
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
6.45
Additional Feature:
FLYBACK
Approvals:
AEC-Q200
Height:
14 mm
Input Voltage-Max:
57 V
Input Voltage-Min:
36 V
Length:
14.5 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
1
Number of Secondary Winding:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
12 V
Packing Method:
TR, EMBOSSED PLASTIC, 13 INCH
Power Rating:
40 W
Primary Inductance:
27.8 µH
Surface Mount:
YES
Transformer Type:
SMPS TRANSFORMER
Width:
13 mm

POE40Q-12ED Frequently Asked Questions (FAQs)

Coilcraft recommends a symmetrical PCB layout with a solid ground plane, and keeping the component away from high-current carrying traces. A 4-layer PCB with a dedicated power plane is also recommended.
The POE40Q-12ED is designed to minimize high-frequency noise and EMI. It has a shielded construction and a ferrite core, which helps to reduce radiated emissions and improve immunity to external noise.
The POE40Q-12ED is rated for operation from -40°C to +125°C, but derating may be necessary for high-current applications. Consult the datasheet for specific derating curves.
Yes, the POE40Q-12ED is designed to withstand high-vibration and high-shock environments. It meets the requirements of IEC 60068-2-27 and IEC 60068-2-6 for vibration and shock, respectively.
Yes, the POE40Q-12ED is compatible with lead-free soldering processes and meets the requirements of IPC/J-STD-020D for lead-free solderability.

Trust Checks

Expert Contribution

System Verified

Community Approved

POE40Q-12ED Overview

Use the download button to access the POE40Q-12ED schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like POE40, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
