POE40Q-33ED - COILCRAFT

Description: Audio Transformers / Signal Transformers Flyback PoE 40W 33.3uH 3.3V 3.5A

Download POE40Q-33ED Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

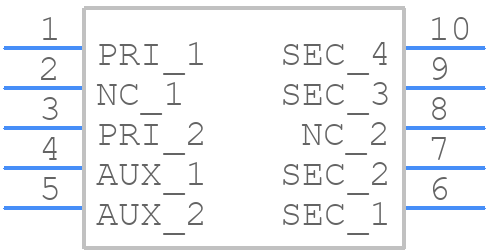

POE40Q-33ED - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
POE40Q-33ED - COILCRAFT PCB footprint - Small Outline Packages - Small Outline Packages - SMD-10
click to zoom
3D Models
POE40Q-33ED - COILCRAFT - 3D model - Small Outline Packages - SMD-10
click to zoom

POE40Q-33ED Details

  • Manufacturer Part Number:

    POE40Q-33ED

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.45

  • Additional Feature:

    FLYBACK

  • Approvals:

    AEC-Q200

  • Height:

    14 mm

  • Input Voltage-Max:

    57 V

  • Input Voltage-Min:

    36 V

  • Length:

    14.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    3.3 V

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Power Rating:

    40 W

  • Primary Inductance:

    33.3 µH

  • Surface Mount:

    YES

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    13 mm

POE40Q-33ED Frequently Asked Questions (FAQs)

  • Coilcraft recommends a symmetrical PCB layout with a solid ground plane and a minimum of 0.5 mm clearance around the component to ensure optimal performance and minimize electromagnetic interference.
  • The POE40Q-33ED has a maximum operating temperature of 125°C. Ensure proper thermal management by providing adequate airflow, using thermal vias, and keeping the component away from heat sources.
  • Coilcraft recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a minimum of 2°C/sec cooling rate to prevent thermal shock and ensure reliable solder joints.
  • The POE40Q-33ED is designed to withstand moderate vibration levels. However, for high-vibration environments, consider using additional mechanical support or a more robust mounting method to ensure the component's reliability.
  • Follow proper PCB design and layout guidelines, use shielding and filtering components as necessary, and ensure the component is properly grounded to minimize electromagnetic radiation and susceptibility.
