POE40Q-50ED footprint, schematic symbol and 3D model by COILCRAFT

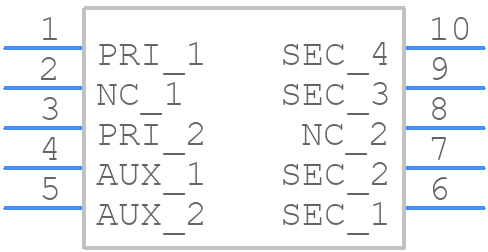

Symbol

click to zoom

PCB Footprints

POE40Q-50ED - COILCRAFT PCB footprint - Other - Other - POE40Q-50ED-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for POE40Q-50ED
Part Number POE40Q-50ED
Manufacturer COILCRAFT
Pin Count 10
Part Category Transformer
Package Category Other
Footprint Name Other - POE40Q-50ED-1
Released Date Aug 3, 2020
Last Modified Date Jun 22, 2023 10:55 AM UTC
Pinout / Pin List Click Here (Member Only)

POE40Q-50ED Details

Manufacturer Part Number:
POE40Q-50ED
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
6.45
Additional Feature:
FLYBACK
Approvals:
AEC-Q200
Height:
14 mm
Input Voltage-Max:
57 V
Input Voltage-Min:
36 V
Length:
14.5 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
1
Number of Secondary Winding:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
5 V
Packing Method:
TR, EMBOSSED PLASTIC, 13 INCH
Power Rating:
40 W
Primary Inductance:
33.3 µH
Surface Mount:
YES
Transformer Type:
SMPS TRANSFORMER
Width:
13 mm

POE40Q-50ED Frequently Asked Questions (FAQs)

Coilcraft recommends a symmetrical PCB layout with a solid ground plane, and keeping the component away from high-current carrying traces. A 4-layer PCB with a dedicated power plane is also recommended.
The POE40Q-50ED is designed to minimize high-frequency noise and EMI through its shielded construction and internal Faraday shield. Additionally, Coilcraft recommends using proper PCB layout and grounding techniques to further reduce EMI.
The POE40Q-50ED is rated for operation from -40°C to +125°C, but derating may be necessary for high-current applications. Consult Coilcraft's application notes for more information.
Yes, the POE40Q-50ED is designed to withstand high-vibration and high-shock environments, but it's recommended to follow Coilcraft's guidelines for mounting and securing the component to ensure reliable operation.
Coilcraft recommends storing the POE40Q-50ED in its original packaging, away from direct sunlight and moisture. Handling should be done with anti-static precautions, and the component should not be bent or flexed excessively.

Trust Checks

System Verified

POE40Q-50ED Overview

Use the download button to access the POE40Q-50ED schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like POE40, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
