Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for POE600F-50LD
- Part Number POE600F-50LD
- Manufacturer COILCRAFT
- Pin Count 12
- Part Category Transformer
- Package Category Other
- Footprint Name Other - POE600F-50LD-1
- Released Date Nov 17, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
POE600F-50LD Details
-
Manufacturer Part Number:
POE600F-50LD
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
CHIP
-
ECCN Code:
EAR99
-
Manufacturer:
Coilcraft Inc
-
YTEOL:
6.83
-
Height:
11.43 mm
-
Input Voltage-Max:
72 V
-
Input Voltage-Min:
36 V
-
Length:
30 mm
POE600F-50LD Frequently Asked Questions (FAQs)
-
Coilcraft recommends a symmetrical PCB layout with a solid ground plane and a minimum of 0.5 mm clearance around the component to ensure optimal performance and minimize electromagnetic interference (EMI).
-
The POE600F-50LD is designed to minimize high-frequency noise and EMI through its shielded construction and internal Faraday shield, which helps to reduce electromagnetic radiation and improve signal integrity.
-
The POE600F-50LD is rated for operation from -40°C to +125°C, making it suitable for use in a wide range of industrial and commercial applications.
-
Yes, the POE600F-50LD is designed to withstand high-vibration environments and meets the requirements of IEC 60068-2-6 for vibration testing.
-
Yes, the POE600F-50LD is compatible with lead-free soldering processes and meets the requirements of the RoHS directive for lead-free components.
Trust Checks
Community Provided
System Verified
Community Approved
POE600F-50LD Overview

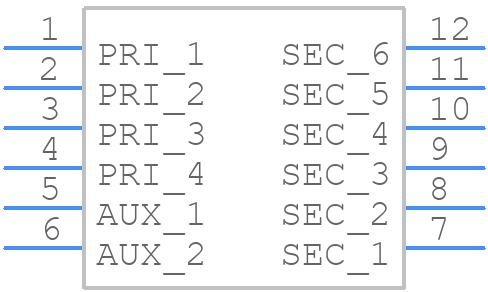

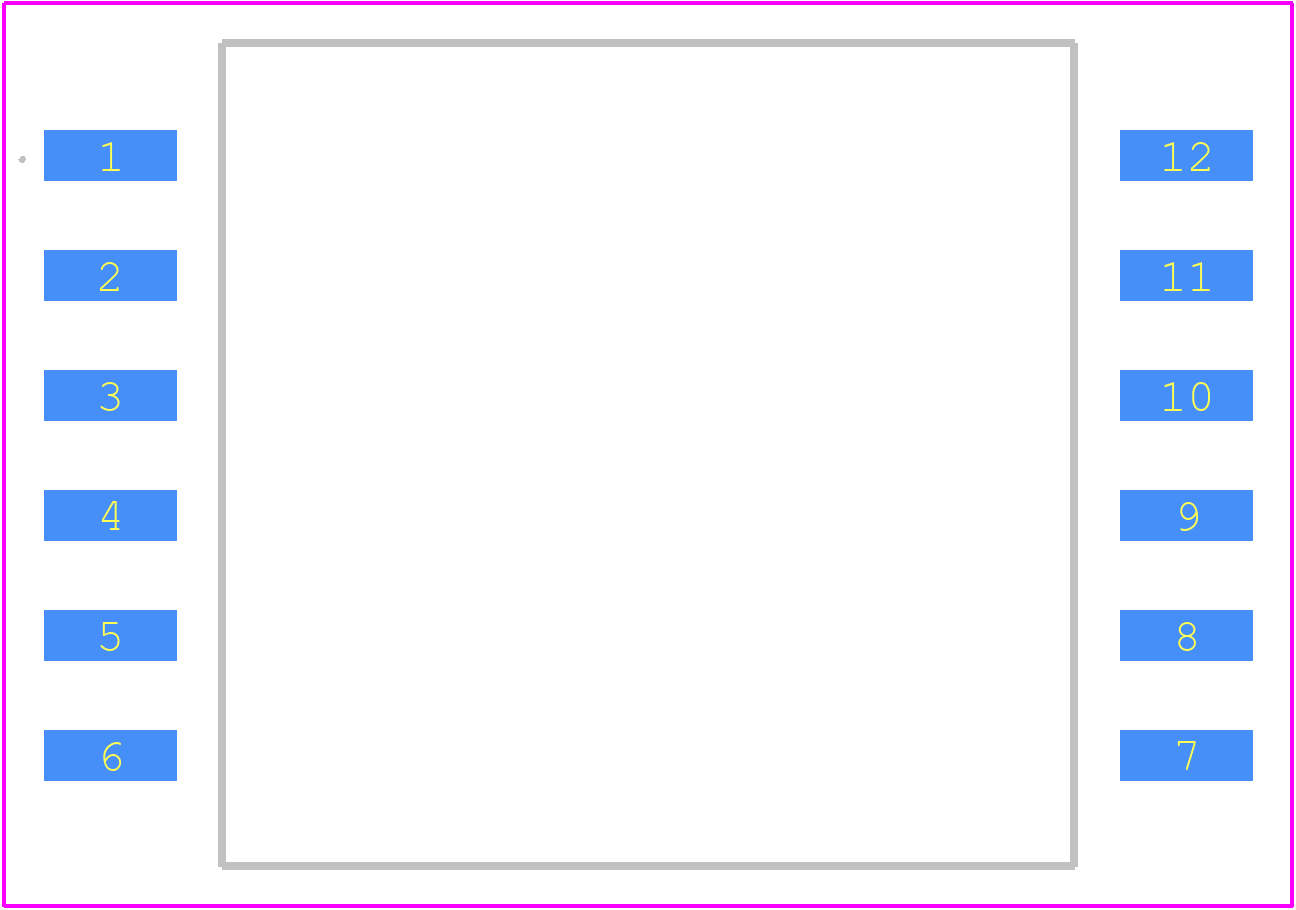

Use the download button to access the POE600F-50LD schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like POE60,
or try a keyword search, such as SMPS Transformers
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
