POE70P-12LB footprint, schematic symbol and 3D model by COILCRAFT

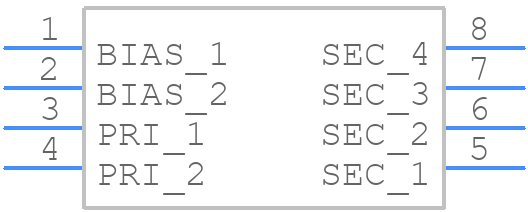

Symbol

click to zoom

PCB Footprints

POE70P-12LB - COILCRAFT PCB footprint - Other - Other - POE70P-12LB-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for POE70P-12LB
Part Number POE70P-12LB
Manufacturer COILCRAFT
Pin Count 8
Part Category Transformer
Package Category Other
Footprint Name Other - POE70P-12LB-1
Released Date Mar 23, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

POE70P-12LB Details

Manufacturer Part Number:
POE70P-12LB
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
0
Additional Feature:
HEIGHT DIMENSION INCLUDES TERMINAL ALSO
Height:
11 mm
Input Voltage-Max:
72 V
Input Voltage-Min:
36 V
JESD-609 Code:
e2
Length:
12.7 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
2
Number of Secondary Winding:
2
Operating Frequency-Max:
250 kHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
12 V
Output Voltage 2:
12 V
Packing Method:
TAPE & REEL
Power Rating:
7 W
Primary Inductance:
155000 µH
Surface Mount:
YES
Terminal Finish:
Tin/Silver (Sn/Ag)
Transformer Type:
SMPS TRANSFORMER
Width:
10.5 mm

POE70P-12LB Frequently Asked Questions (FAQs)

Coilcraft recommends a symmetrical PCB layout with a solid ground plane, and keeping the component away from high-current carrying traces. A minimum of 0.5 mm clearance around the component is also recommended.
While the POE70P-12LB is rated for operation up to 125°C, it's recommended to derate the current rating by 1.5% per degree Celsius above 80°C to ensure reliable operation.
Coilcraft provides safety certifications and reports for the POE70P-12LB, including UL and IEC. Engineers should review these documents and consult with Coilcraft's technical support team to ensure compliance with their specific requirements.
Coilcraft recommends storing the POE70P-12LB in its original packaging, away from direct sunlight and moisture. Handling should be done with electrostatic discharge (ESD) precautions, and the component should not be bent or flexed excessively.
While the POE70P-12LB is designed to be rugged, it's recommended to follow Coilcraft's guidelines for vibration and shock testing. Engineers should also consider potting or encapsulating the component to ensure reliability in harsh environments.

Trust Checks

Expert Contribution

System Verified

Community Approved

POE70P-12LB Overview

Use the download button to access the POE70P-12LB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like POE70, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
