POE70P-50LB footprint, schematic symbol and 3D model by COILCRAFT

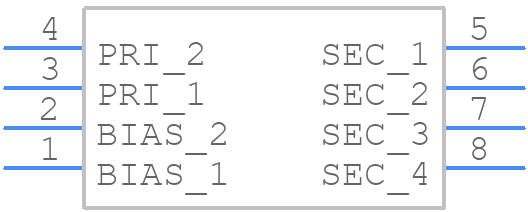

Symbol

click to zoom

PCB Footprints

POE70P-50LB - COILCRAFT PCB footprint - Other - Other - POE70P-50LB-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for POE70P-50LB
Part Number POE70P-50LB
Manufacturer COILCRAFT
Pin Count 8
Part Category Transformer
Package Category Other
Footprint Name Other - POE70P-50LB-1
Released Date Jan 15, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

POE70P-50LB Details

Manufacturer Part Number:
POE70P-50LB
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
0
Additional Feature:
HEIGHT DIMENSION INCLUDES TERMINAL ALSO
Height:
11 mm
Input Voltage-Max:
72 V
Input Voltage-Min:
36 V
JESD-609 Code:
e2
Length:
12.7 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
2
Number of Secondary Winding:
2
Operating Frequency-Max:
250 kHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
12 V
Output Voltage 2:
5 V
Packing Method:
TAPE & REEL
Power Rating:
7 W
Primary Inductance:
155000 µH
Surface Mount:
YES
Terminal Finish:
Tin/Silver (Sn/Ag)
Transformer Type:
SMPS TRANSFORMER
Width:
10.5 mm

POE70P-50LB Frequently Asked Questions (FAQs)

Coilcraft recommends a symmetrical layout with the inductor centered on the PCB, and the pads should be at least 0.5 mm from the edge of the board to minimize radiation.
Use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder to the pads. Avoid applying excessive heat or pressure, which can damage the component.
The maximum current rating for the POE70P-50LB is 5.5 A, but it's recommended to derate the current based on the operating temperature and other environmental factors.
The POE70P-50LB is rated for operation up to 125°C, but the inductance and DCR may vary with temperature. Consult the datasheet for temperature derating curves.
Use a shielded enclosure or a metal can to minimize radiation. Keep the inductor away from sensitive components and use a common-mode choke or ferrite bead to filter EMI.

Trust Checks

Expert Contribution

System Verified

Community Approved

POE70P-50LB Overview

Use the download button to access the POE70P-50LB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like POE70, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
