POE70P-50LD - COILCRAFT

Description: Audio Transformers / Signal Transformers POE70P Flyback 7uH 5.0 V 1.4 A

Download POE70P-50LD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

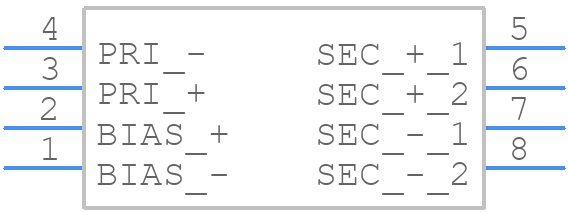

Symbol
POE70P-50LD - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
POE70P-50LD - COILCRAFT PCB footprint - Other - Other - POE70P-50LD-1
click to zoom
3D Models
POE70P-50LD - COILCRAFT - 3D model - Other - POE70P-50LD-1
click to zoom

POE70P-50LD Details

  • Manufacturer Part Number:

    POE70P-50LD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.16

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINAL ALSO

  • Height:

    11 mm

  • Input Voltage-Max:

    72 V

  • Input Voltage-Min:

    36 V

  • JESD-609 Code:

    e2

  • Length:

    12.7 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Operating Frequency-Max:

    250 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    12 V

  • Output Voltage 2:

    5 V

  • Packing Method:

    TAPE & REEL

  • Power Rating:

    7 W

  • Primary Inductance:

    155000 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    10.5 mm

POE70P-50LD Frequently Asked Questions (FAQs)

  • Coilcraft recommends a symmetrical layout with the inductor centered on the PCB, and using a solid ground plane to reduce radiation and improve shielding.
  • Use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder to the pads. Avoid applying excessive heat or pressure, which can damage the component.
  • The maximum current rating is 50A, but it's recommended to derate the current based on the operating temperature and other environmental factors to ensure reliable operation.
  • The POE70P-50LD is rated for operation up to 125°C, but the inductance and saturation current may vary with temperature. Consult the datasheet and application notes for guidance on high-temperature operation.
  • Use an impedance analyzer or an LCR meter to measure the inductance at the desired frequency. Ensure the measurement setup is properly calibrated and the inductor is properly connected to the measurement equipment.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

POE70P-50LD Overview

Use the download button to access the POE70P-50LD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like POE70, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
