Part Image

PPA2203100KJ - Nichicon

Description: 0.1 µF Film Capacitor 650V 2000V (2kV) Polypropylene (PP), Metallized Axial

Download PPA2203100KJ Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PPA2203100KJ model

Email notifications will be applied after download.

Send part feedback

Symbol

PPA2203100KJ - Nichicon - PCB symbol

PCB Footprints

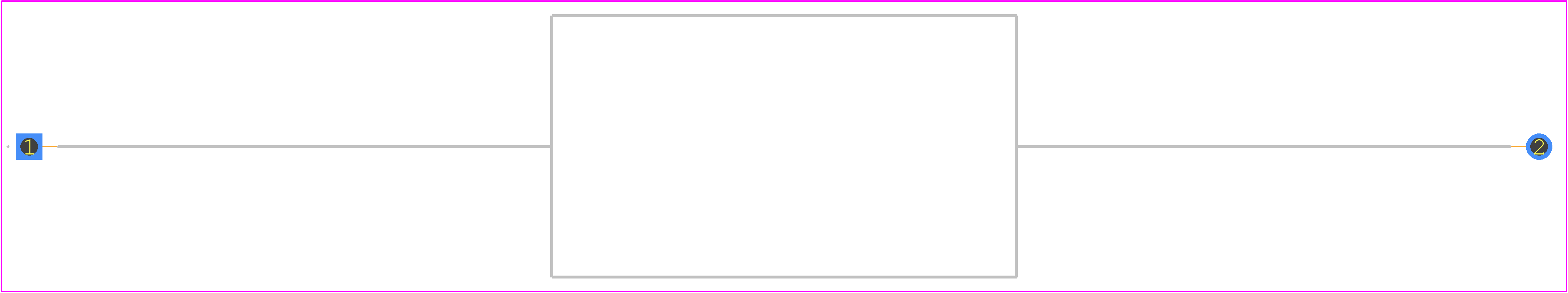

PPA2203100KJ - Nichicon PCB footprint - Other - Other - 18 x 32 mm

3D Models

PPA2203100KJ - Nichicon - 3D model - Other - 18 x 32 mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for PPA2203100KJ
Part Number PPA2203100KJ
Manufacturer Nichicon
Pin Count 2
Part Category Capacitor
Package Category Other
Footprint Name Other - 18 x 32 mm
Released Date May 7, 2026
Last Modified Date May 7, 2026 6:19 AM UTC
Pinout / Pin List Click Here (Member Only)

PPA2203100KJ Details

Manufacturer Part Number:
PPA2203100KJ
Manufacturer:
Nichicon Corporation

Trust Checks

Community Provided

System Verified

Community Approved

PPA2203100KJ Overview

Use the download button to access the PPA2203100KJ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PPA22, or try a keyword search, such as Film Capacitors
