Technical Content
Part Image

PPA2253100KN - Nichicon

Description: Film Capacitors 2500 Vdc 0.1uf Cylindrical. axial

Download PPA2253100KN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PPA2253100KN - Nichicon - PCB symbol
click to zoom
PCB Footprints

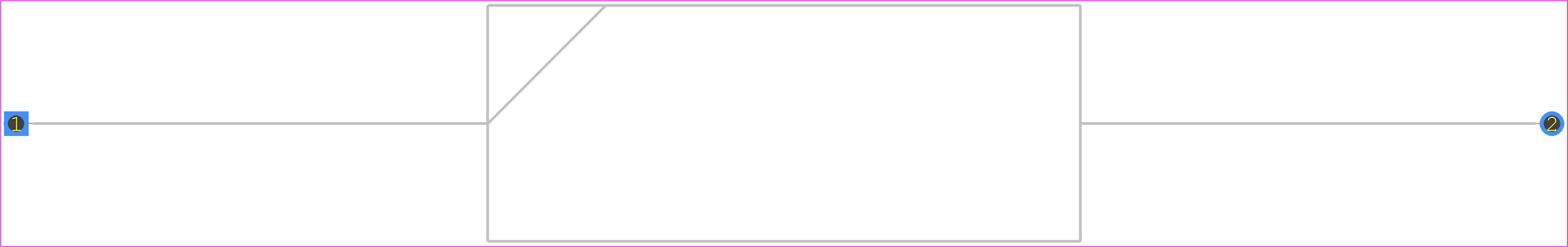

PPA2253100KN - Nichicon PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 17.5mm x 44mm
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for PPA2253100KN
  • Part Number PPA2253100KN
  • Manufacturer Nichicon
  • Pin Count 2
  • Part Category Capacitor Polarised
  • Package Category Capacitors, Polarized Axial Diameter Horizontal Mounting
  • Footprint Name Capacitors, Polarized Axial Diameter Horizontal Mounting - 17.5mm x 44mm
  • Released Date Jul 24, 2023
  • Last Modified Date Nov 26, 2025 2:01 PM UTC
  • Pinout / Pin List Click Here (Member Only)

PPA2253100KN Details

  • Manufacturer Part Number:

    PPA2253100KN

  • Manufacturer:

    Nichicon Corporation

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PPA2253100KN Overview

Use the download button to access the PPA2253100KN schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PPA22, or try a keyword search, such as Film Capacitors
