Part Image

PPPC052LJBN-RC - Sullins

Description: HEADER FEMALE, .100" [2.54mm] CC, 2 ROW, RA, positions per row

Download PPPC052LJBN-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PPPC052LJBN-RC - Sullins - PCB symbol
click to zoom
PCB Footprints

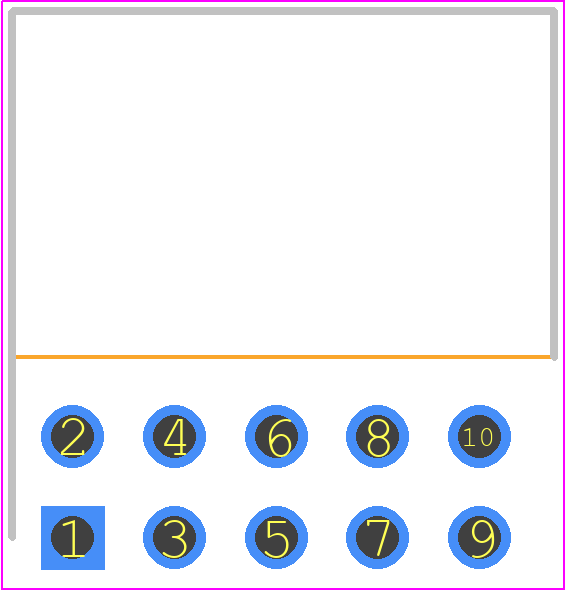

PPPC052LJBN-RC - Sullins PCB footprint - Header, Receptacle - Right Angle PTH Box - Header, Receptacle - Right Angle PTH Box - PPPC052LJBN-RC
click to zoom
3D Models
PPPC052LJBN-RC - Sullins - 3D model - Header, Receptacle - Right Angle PTH Box - PPPC052LJBN-RC
click to zoom

PPPC052LJBN-RC Details

  • Manufacturer Part Number:

    PPPC052LJBN-RC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    9.1

  • Body Breadth:

    0.197 inch

  • Body Length:

    0.52 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Material:

    POLYESTER

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    FLASH inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

PPPC052LJBN-RC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the PPPC052LJBN-RC connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and ensure proper mounting and screw torque.
  • The operating temperature range for the PPPC052LJBN-RC connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the PPPC052LJBN-RC connector is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for soldering temperature and time to ensure reliable connections.
  • The mating cycle life of the PPPC052LJBN-RC connector is 500 cycles minimum, but this may vary depending on the application and environmental conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PPPC052LJBN-RC Overview

Use the download button to access the PPPC052LJBN-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PPPC0, or try a keyword search, such as Headers and Edge Type Connectors
