Part Image

PPPC091LGBN-RC - Sullins

Description: 9 Position Header Connector 0.100" (2.54mm) Through Hole, Right Angle Gold

Download PPPC091LGBN-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PPPC091LGBN-RC - Sullins - PCB symbol
click to zoom
PCB Footprints

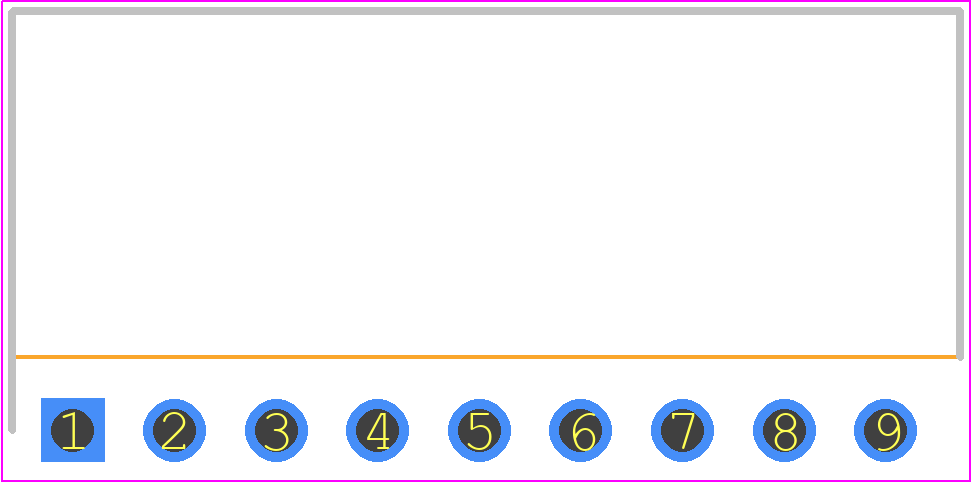

PPPC091LGBN-RC - Sullins PCB footprint - Header, Receptacle - Right Angle PTH Box - Header, Receptacle - Right Angle PTH Box - PPPC091LGBN-RC
click to zoom
3D Models
PPPC091LGBN-RC - Sullins - 3D model - Header, Receptacle - Right Angle PTH Box - PPPC091LGBN-RC
click to zoom

PPPC091LGBN-RC Details

  • Manufacturer Part Number:

    PPPC091LGBN-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    9.1

  • Body Breadth:

    0.094 inch

  • Body Length:

    0.92 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Material:

    POLYESTER

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    FLASH inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

PPPC091LGBN-RC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 N·m (0.37-1.06 lbf·in) to ensure secure mating and prevent damage to the connector.
  • Yes, the PPPC091LGBN-RC connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration applications, such as in industrial or transportation systems.
  • Yes, the PPPC091LGBN-RC connector is compatible with lead-free soldering processes and meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The operating temperature range of the PPPC091LGBN-RC connector is -40°C to 105°C (-40°F to 221°F), making it suitable for use in a wide range of applications.
  • The PPPC091LGBN-RC connector has a moisture-resistant design and can operate in humid or wet environments, but it is not designed for immersion in water or exposure to extreme moisture levels.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PPPC091LGBN-RC Overview

Use the download button to access the PPPC091LGBN-RC schematic symbol, PCB footprint, and 3D model.
