PPPC121LFBN-RC - Sullins

Description: 12 Position Header Connector 0.100" (2.54mm) Through Hole Gold

Download PPPC121LFBN-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PPPC121LFBN-RC - Sullins - PCB symbol
click to zoom
PCB Footprints

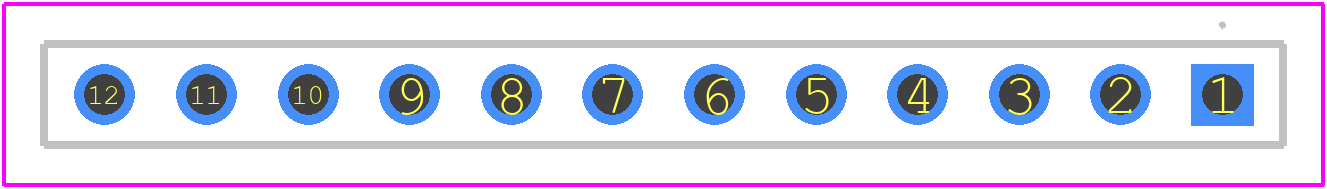

PPPC121LFBN-RC - Sullins PCB footprint - Other - Other - PPPC121LFBN-RC-4
click to zoom
3D Models
PPPC121LFBN-RC - Sullins - 3D model - Other - PPPC121LFBN-RC-4
click to zoom

PPPC121LFBN-RC Details

  • Manufacturer Part Number:

    PPPC121LFBN-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    9.1

  • Body Breadth:

    0.094 inch

  • Body Depth:

    0.334 inch

  • Body Length:

    1.22 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Material:

    POLYESTER

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    FLASH inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

PPPC121LFBN-RC Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the PPPC121LFBN-RC connector is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the PPPC121LFBN-RC connector is designed to withstand high-vibration environments and is suitable for applications such as aerospace, automotive, and industrial control systems.
  • Yes, the PPPC121LFBN-RC connector is designed to operate in harsh environments, including high temperatures up to 125°C (257°F) and high humidity. However, it's recommended to consult with Sullins Connector Solutions for specific application requirements.
  • The PPPC121LFBN-RC connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent mating and unmating.
  • Yes, the PPPC121LFBN-RC connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in European Union countries.
